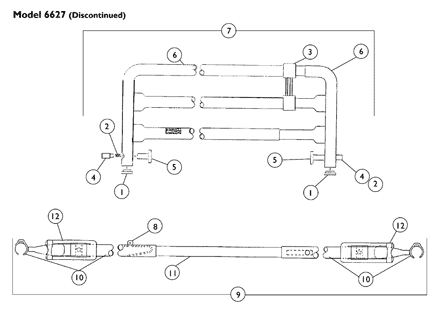

Standard Quick Clip-On Bed Rails - 6627
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1027096 | Plug Button, Grey (7/8") | 1 | 4 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 19000X023 | Spring, Plunger (23/64 x 5/8") | 1 | 4 |
Create/add to WishlistCreate/add to Wishlist |
||
3 | 1012658 | NLA - Spacer, Tube | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1012660 | NLA - Pin, Plunger | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1012656 | Knob, Plunger, Grey | 1 | 4 |
Create/add to WishlistCreate/add to Wishlist |
||
6 | 1012669 | Rail, Telescoping - Outside | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
||
6 | 1012670 | Rail, Telescoping - Inside | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
||
7 | 1013305 | NLA - Telescoping Rail Assembly | 1 | 2 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
8 | 40188X009 | Button, Single Snap | 1 | 4 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1023490 | NLA - Crossbrace Assembly | 1 | 2 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
10 | 1022789 | NLA - Tube, Channel with Barrel - Left Head End / Right Foot End | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1022790 | NLA - Tube, Channel with Barrel - Left Foot End / Right Head End | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1022842 | NLA - Tube, Channel - Center | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1022652 | NLA - Clip, Spring | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 1-6 |
B | Crossbrace Assembly is no longer available. May be replaced with crossbrace from model 6629. |
