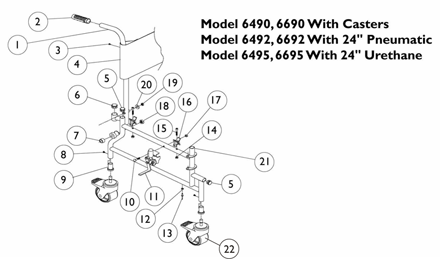

Rehab Shower/Commode Chair - Model 6490, 6690, 6492, 6692, 6495 and 6695

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1079121	NLA - Frame with Hardware, Navy Blue - Right	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1079122	NLA - Frame with Hardware, Navy Blue - Left	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1023623	NLA - Frame with Hardware, Navy Blue - Right	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1023624	NLA - Frame with Hardware, Navy Blue - Left	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	40299X009	NLA - Grip, Hand, Grey	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1017678	NLA - Fastener, Clip	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1023632	Clip, Shroud	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1017104	NLA-Upholstery, Back (6490 Series)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1028043	NLA - Upholstery, Back (6690 Series)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1040840	NLA - Plug Button, Grey (7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1057287	Plug Button, Grey (1")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028832	Spacer (5/8 x 7/8 x 1/2")	1	2	$9.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1021384	NLA - Screw, Phillips Pan Head (#8-32 x 1/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1016682	Bearing, Sleeve Caster	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1021402	Bolt, Carriage (1/4-20 x 1-1/4")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1026243	NLA - Wheel Lock - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1026244	NLA - Wheel Lock - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	16347X000	NLA - Washer, Nylon (3/16 x 7/16 x 1/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	16348X000	NLA - Rivet (3/16 x 7/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1023521	NLA - Locknut, Hex (1/4-20)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1004170	Screw, Socket Head (1/4-20 x 1-1/2")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1015390	Guide, Seat	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1021403	Nut, Hex Flang (1/4-20)	1	1	$1.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1023523	NLA - Locknut (5/8-18)	1	2	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1021383	NLA - Locknut, Hex (5/16-18)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1016301	Washer, Nylon (5/16 x 7/8 x 1/8")	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	40186X017	NLA - Tube, Insert	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1040673	NLA - Kit, Caster Assembly w/ Bearing Sleeve, Swivel w/o Lock (5")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1058160	NLA - Kit, Caster Assembly w/ Bearing Sleeve, Swivel w/o Lock (5") (Pair)	2	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1040674	NLA - Caster Assembly with Lock	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1058161	NLA - Package, Caster Assembly with Lock	4	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2, 5, 6, 8, 9, 11, 13-16 and 21.
B	Before 7/17/96.
C	After 7/16/96.
D	Wheel Hardware.
