EQUIPMENT CA Site

1

1114074

Hardware, Axle Tube Mounting, Quick Release

1

$437.00

A

Create/add to Wishlist

1

1114075

Hardware, Axle Tube Mounting, Nut and Bolt

1

$383.00

B

Create/add to Wishlist

2

1111954

NLA - Screw, Socket Head (5/16-24 x 7/8")

1

2

N/A

Create/add to Wishlist

3

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

2

$9.00

Create/add to Wishlist

4

1112017

Clamp, Camber - Right

1

$141.00

Create/add to Wishlist

4

1112018

NLA - Clamp, Camber - Left

1

N/A

Create/add to Wishlist

5

1065886

Ring, Toe-In/Toe-Out Adjusting

1

2

$9.00

Create/add to Wishlist

6

See Chart

Added to Cart

Chair Width	12"	13"	14"	15"	16"	17"	18"
	1065990- NLA	1065991- NLA	1065992- NLA	1065993- NLA	1065994- NLA	1065995- NLA	1065996- NLA

Chair Width	19"	20"	21"	22"
	1065997- NLA	1065998- NLA	1083015- NLA	1083016- NLA

Create/add to Wishlist

#6 Axle Tubes

N/A

Create/add to Wishlist

7

See Chart

Added to Cart

Camber Angle	Right	Left
0 degrees	1112121- NLA	1112122- NLA
3 degrees	1112123- NLA	1112124- NLA
6 degrees	1112125- NLA	1112126- NLA
9 degrees	1112127- NLA	1112128- NLA
12 degrees	1112129- NLA	1112130- NLA

Create/add to Wishlist

#7 Single Setting Camber Inserts

N/A

Create/add to Wishlist

7

See Chart

Added to Cart

Camber Angle Dual Settings	Right	Left
0 - 3 degrees	1066219- NLA	1066229- NLA
0 - 6 degrees	1066220- NLA	1066230- NLA
0 - 9 degrees	1066221- NLA	1066231- NLA
0 - 12 degrees	1066222- NLA	1066232- NLA
3 - 6 degrees	1066223- NLA	1066233- NLA
3 - 9 degrees	1066224- NLA	1066234- NLA
3 - 12 degrees	1066225- NLA	1066235- NLA
6 - 9 degrees	1066226- NLA	1066236- NLA
6 - 12 degrees	1066227- NLA	1066237- NLA
9 - 12 degrees	1066228- NLA	1066238- NLA

Create/add to Wishlist

#7 Dual Setting Camber Inserts

N/A

Create/add to Wishlist

8

1066489

NLA - Screw, Thread Forming (M4 x 16mm)

1

2

N/A

Create/add to Wishlist

9

1111939

NLA - Pin, Quick Release

1

2

N/A

Create/add to Wishlist

10

1065887

NLA - Ring, Indexing

1

2

N/A

Create/add to Wishlist

11

1026907

Washer (1/4 x 1/2 x 1/16")

1

2

$8.00

Create/add to Wishlist

12

1074640

Screw, Allen Head (1/4-28 x 1-1/4")

1

2

$10.40

Create/add to Wishlist

13

1121373

NLA - Shock Absorbers w/ Bolt-On Hardware, Soft Setting (Pair)

2

1

N/A

D

Create/add to Wishlist

13

1121374

NLA - Shock Absorbers w/ Bolt-On Hardware, Firm Setting (Pair)

2

1

N/A

D

Create/add to Wishlist

13

1123918

NLA - Shock Absorbers w/ Quick Release Hardware, Soft Setting (Pair)

2

1

N/A

E

Create/add to Wishlist

13

1123919

NLA - Shock Absorbers w/ Quick Release Hardware, Firm Setting (Pair)

2

1

N/A

E

Create/add to Wishlist

14

1083913

Pin, Quick Release

1

2

$15.60

Create/add to Wishlist

1123920

NLA - Kit, Quick Release Pin (Pkg. of 2)

2

1

N/A

G

Create/add to Wishlist

15

1047449

NLA - Spacer (1/4 x 3/8 x 3/16")

1

2

N/A

Create/add to Wishlist

16

1116511

NLA - Shock Absorber Assembly, Soft Setting (Pair)

2

1

N/A

C

Create/add to Wishlist

16

1116510

NLA - Shock Absorber Assembly, Firm Setting (Pair)

2

1

N/A

C

Create/add to Wishlist

17

1040361

Axle, Quick Release w/ Locknut (1/2" x 5")

1

2

$41.00

Create/add to Wishlist

18

1069340

Axle, Quad Release w/ Clip

1

2

$142.00

Create/add to Wishlist

19

1113049

Axle, Quick Release w/ Dome Button, Black

1

$54.00

H

Create/add to Wishlist

19

1065303

Axle, Quick Release w/ Flat Button, Black

1

$62.00

J

Create/add to Wishlist

1121375

NLA - Kit, Suspension Bolt-On, Soft Setting (Pair)

2

1

N/A

G

Create/add to Wishlist

1121376

NLA - Kit, Suspension Bolt-On, Firm Setting (Pair)

2

1

N/A

G

Note Code	Definition
A	Includes items 2 - 5, and 8 - 10.
B	Includes items 2 - 5, 8, and 10 - 12.
C	Includes Attaching Hardware (4 ea. 1/4-20 x 1" Screws not sold separately)
D	Includes items 10 and 16.
E	Includes items 10, and 14 - 16.
G	Not Shown. Includes 2 ea of items 14 (Q.R. Pin) and 15 (Spacer).
H	Used on all Spoke wheels except Spinergy wheels
J	Spinergy wheels only

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

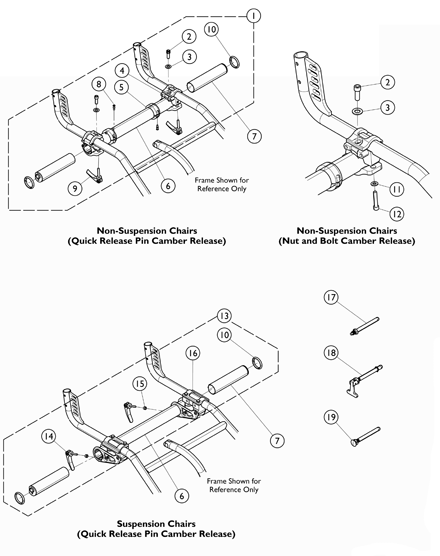

Hardware - Suspension, Axles, Axle Tubes, and Camber Inserts
