Accessories - Solid Folding Seat

Print this page

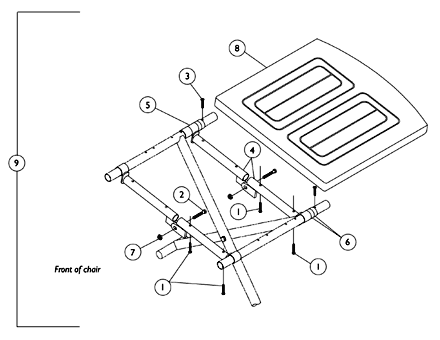

Solid Folding Seat

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	11008X011	Screw, Phillips Round Head (#10-32 x 1-3/8")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	12144X000	Screw, Hex Head (5/16-18 x 1")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	20228X013	NLA - Screw, Phillips Oval Head (#10 x 7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1012976	NLA - Crossbrace, Chrome (16-1/2" W)	1	4	N/A	B ,C ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1012979	NLA - Crossbrace, Chrome (18" W)	1	4	N/A	B ,C ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	47397X019	Spacer (7/8 x 1 x 1")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	47397X024	Spacer (7/8 x 1 x 7/16")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	60290X002	Locknut (5/16-18)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	8881105954	Upholstery, Seat, Solid, Vinyl (16-1/2" Wide Chairs)	1	1		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	8881105955	Upholstery, Seat, Solid, Vinyl (18" Wide Chair)	1	1		E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881105956	NLA - Seat, Solid Folding (16-1/2" W)	1	1	N/A	B ,D ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881105957	NLA - Seat, Solid Folding (18" W)	1	1	N/A	B ,D ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881105958	NLA - Seat, Solid Folding (16-1/2" W)	1	1	N/A	C ,D ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1045992	Solid Folding Seat Assembly, Vinyl, U05 Jet Black (16-1/2" W)	1	1		C ,D ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881105959	NLA - Seat, Solid Folding (18" W)	1	1	N/A	C ,E ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1045994	NLA - Solid Folding Seat Assembly, Vinyl, U05 Jet Black (18" W)	1	1	N/A	C ,E ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1036813	NLA - Instruction Sheet	1	1	N/A	A ,G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	Permanent Arm Chair.
C	Removable Arm Chair.
D	16-1/2" Wide Chair.
E	18" Wide Chair.
F	Includes Items 1-8.
G	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.

Catalog Literature

Parts Books for Tracer® / Tracer® IV (Before 10/1/03) Tracer® Transport Tracer® LX & LX Recliner Tracer® Plus / Tracer® LT
