Crossbraces and Hardware - EX/DLX (Before 3/12/00) /MG/MGI/CareGuard

Print this page

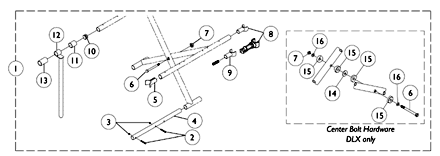

Crossbraces and Hardware EX/ DLX (Before 3/12/00) /MG/MGI/CareGuard

Click to Enlarge

Assembly Part Notes

Note Code Definition
A Not Shown.
B Used on Tracer DLX Before 3/12/00. (Hardware group #1075870)
C Used on CareGuard Removable Arm and Invacare MG & MGI Fixed Front Frames. (Hardware group #1080050)
D Used on Tracer EX 16-18" Wide Chairs with Removable Arms and "S" Frames or Invacare MG with Removable Arms and "S" Frames. (Hardware group #1064237)
E Used on Tracer EX 16-18" Wide Chairs w/Removable Arms and "Box" Frames or Invacare MG & MGI 14-18" Wide w/Removable Arms and "Box" Frames. (Hardware group #1086353) Chairs need quantity 4 of part number 1086351.
F Used on Tracer EX 20" Wide Chairs w/Removable Arms and "S" Frames or Tracer EX Permanent Arms with "S" Frames. (Hardware group #1078420)
G Used on Tracer EX or Invacare MGI 20" Wide Removable Arms and "Box" Frames. (Hardware group #1085051)
H This Item needs quantity 4 per unit.
I Used on Tracer EX, Invacare MG, or Invacare MGI Permanent Arms and "Box" Frames. (Hardware group #1086352)
J Used on Invacare MG with Permanent Arms and "S" Frames. (Hardware group#1064169)
K Used on "S" Frame Styles.
L Used on "Box" Frame Styles.
M NOT Used on Tracer DLX Before 3/12/00. (Hardware group #1075870)
N NOT Used on Tracer EX 20" Wide Chairs w/Removable Arms and "S" Frames or Tracer EX Permanent Arms with "S" Frames. (Hardware group #1078420)
