Crossbraces and Hardware - Removable Arm Chairs - Recliner Chairs Only

Print this page

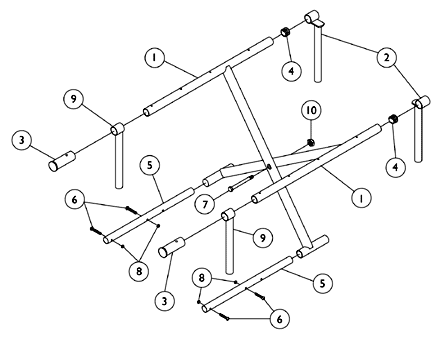

Crossbraces and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1062848	NLA - Crossbrace without Hardware, Chrome - Right (16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1062849	NLA - Crossbrace without Hardware, Chrome - Left (16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1062182	NLA - Crossbrace without Hardware, Chrome - Right (18" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1062183	NLA - Crossbrace without Hardware, Chrome - Left (18" W )	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1054951	NLA - Guide, Seat	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1053069	Insert, Seat Rail	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1027095	Plug Button, Black (7/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1017985	Tube, Insert	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	40183X002	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	40317X001	Screw, Hex Head (5/16-24 x 2-3/4")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	60279X003	Locknut (#10-32)	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1052218	NLA - Seat Guide	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1107321	Nut, Low Cap (5/16"-24)	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
