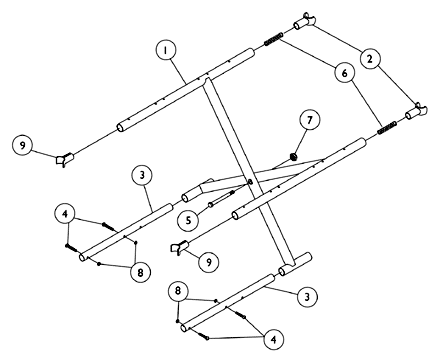

Crossbraces and Hardware - Permanent Arm Chairs

Print this page

Crossbraces and Hardware - All Permanent Arm Chairs

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Chair Width	Adult - Swingaway Frame	Adult Fixed Front	Hemi (Tracer LX Only)
14" Right	1062973- NLA	N/A	N/A
14" Left	1062974- NLA	N/A	N/A
16-1/2" Right	1062978- NLA	1089706	1035671
16-1/2" Left	1062979- NLA	1089707	1035669
18" Right	Note-A 1069719 MSRP: $104.00	1011758	1035642
18" Left	Note-A 1069720 MSRP: $104.00	1011759	1035640

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Chrome Finish 1045586/ 1045587 is no longer available. Order right 1069719 and left 1069720 Crossbrace to match.

Crossbraces without Hardware - Tracer, Plus, LX Chairs

N/A

Create/add to Wishlist

See Chart

Added to Cart

Chair Width	Adult - Chrome	Adult - Black
14" Right	1062973- NLA	1085517- NLA
14" Left	1062974- NLA	1085518- NLA
16-1/2" Right	1062978- NLA	1075879- NLA
16-1/2" Left	1062979- NLA	1075880- NLA
18" Right	Note-A 1069719 MSRP: $104.00	1069719 MSRP: $104.00
18" Left	Note-A 1069720 MSRP: $104.00	1069720 MSRP: $104.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Chrome Finish 1045586/ 1045587 is no longer available. Order right 1069719 and left 1069720 Crossbrace to match.

Crossbraces without Hardware - Transport Chairs

N/A

Create/add to Wishlist

04723X003

NLA - Guide, Seat, Chrome

N/A

A ,B

Create/add to Wishlist

1058416

Guide, Seat, Front, Black

$33.00

Create/add to Wishlist

1023617

Guide, Seat, Rear, Black

$25.00

C ,D

Create/add to Wishlist

1017985

Tube, Insert

Create/add to Wishlist

40183X002

Screw, Phillips Pan Head (#10-32 x 1-1/8")

$9.00

Create/add to Wishlist

40317X001

Screw, Hex Head (5/16-24 x 2-3/4")

$9.00

Create/add to Wishlist

47236X001

Spring, Tension

Create/add to Wishlist

1107321

Nut, Low Cap (5/16"-24)

$9.00

Create/add to Wishlist

60279X003

Locknut (#10-32)

$9.00

Create/add to Wishlist

1058416

Guide, Seat, Front, Black

$33.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	For use on Tracer and Tracer Plus before 2/95.
B	For use on Tracer LX.
C	For use on Tracer and Tracer Pluse after 1/95.
D	For use on Tracer Transport.

Catalog Literature

Parts Books for Tracer® / Tracer® IV (Before 10/1/03) Tracer® Transport Tracer® LX & LX Recliner Tracer® Plus / Tracer® LT
