Electronics - MKIV Joysticks - RII - RX - A - A+ - TCHJOY

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

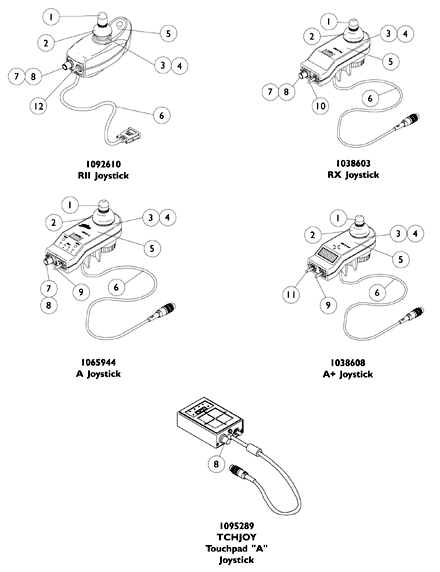

Item Number		Description		RII		RX		A		A+		TCHJOY
See Pictorial		Joystick Assembly		1092610- NLA		1038603- NLA		1065944- NLA		1038608- NLA		1095289- NLA
1		Knob, Joystick		1040217 MSRP: $17.00		1040217 MSRP: $17.00		1040217 MSRP: $17.00		1040217 MSRP: $17.00		N/A
2		Skirt, Joystick		1040218		1040218		1040218		1040218		N/A
3		Inductive, Joystick		Note-A 1036764- NLA		Note-B 1036764- NLA		Note-B 1036764- NLA		Note-A 1036764- NLA		N/A
3		Inductive, Joystick		N/A		Note-C 1104397- NLA		Note-C 1104397- NLA		N/A		N/A
4		Boot, Joystick		50000X364- NLA		50000X364- NLA		50000X364- NLA		50000X364- NLA		N/A
5		Overlay, Joystick Decal		N/A - NLA		1038642- NLA		1040190- NLA		1036776- NLA		N/A
6		Cable Assembly		N/A		Note-B 1036750- NLA		Note-B 1036750- NLA		Note-A 1036750- NLA		N/A
6		Cable Assembly		N/A		Note-C 1104205- NLA		Note-C 1104205- NLA		N/A		N/A
7		Potentiometer, Speed		Note-A 1040225- NLA		Note-B 1040225- NLA		Note-B 1040225- NLA		N/A		N/A
7		Potentiometer, Speed		N/A		Note-C 1115518- NLA		Note-C 1115518- NLA		N/A		N/A
8		Knob, Potentiometer		1025516- NLA		1025516- NLA		1025516- NLA		N/A		1025516- NLA
9		Switch, On/Off Momentary		N/A		N/A		Note-B 1040185- NLA		Note-A 1040185- NLA		N/A
9		Switch, On/Off Momentary		N/A		N/A		Note-C 1115523- NLA		N/A		N/A
10		Switch, Off/ 1-2		N/A		Note-B 1038627- NLA		N/A		N/A		N/A
10		Switch, Off/ 1-2		N/A		Note-C 1115521- NLA		N/A		N/A		N/A
11		Switch, Program		N/A		N/A		N/A		Note-A 1040186- NLA		N/A
12		Switch, Toggle SPDT		Note-A 1010042- NLA		N/A		N/A		N/A		N/A

Create/add to Wishlist

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
B	Before 10/01/02 item requires soldering
C	After 9/30/02 item has a non-solder connector.
A	Item requires soldering

MKIV Joysticks

N/A

N/A

N/A

Catalog Literature

Parts Books for Pronto® R2™, Ranger II™ MWD for WSBT (After 2/29/2000)
