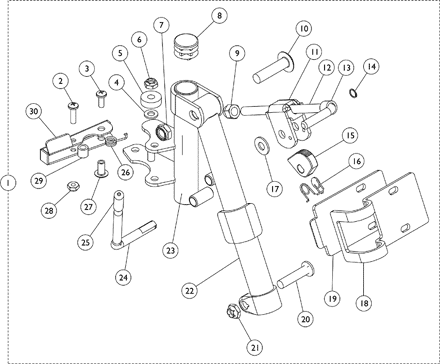

Front Riggings - Legrest Support Assembly J934A - 14 - Chrome

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1100996	Legrest Support Assembly, Black- Right	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1100997	Legrest Support Assembly, Black- Left	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1025716	Screw, Phillips Pan Head (#10-32 x 11/16")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1026114	Screw, Phillips Pan Head (#10-32 x 1/2")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1026907	Washer (1/4 x 1/2 x 1/16")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1100705	Washer (1/4 x 3/4 x 1/4")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1025195	Locknut (1/4-20)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	40363X000	Hex Nut (3/8"-16)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1027095	Plug Button, Black (7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	10261X000	Nut, Acorn (5/16-24)	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	11919X000	NLA - Screw, Slotted Truss Head (3/8-16 x 1-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	04528X002	Bracket, Release, Black	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	42326X001	Bar, Ratchet	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	47330X003	Spacer (5/16 x 1/2 x 3/8")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1040831	Ring, Snap	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1037125	Cam, Legrest	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1037485	Spring, Release	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1013519	Washer, Nylon (5/16 x 11/16 x 1/16")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	47352X004	Clamp, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	47352X003	Lock, Pad Plate, Legrest, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1107321	Nut, Low Cap (5/16"-24)	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	04526X002	NLA - Tube, Support, Legrest, Elevating, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	04526X003	NLA - Tube, Support, Legrest, Elevating, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1131381	Support, Elevating Legrest, Black - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1131382	Support, Elevating Legrest, Black - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1037126	Handle, Release	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1040060	Tip, Plastic, Black	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1028707	Spring, Release - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1028708	Spring, Release - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	1028846	NLA - Rivnut (#10-32)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1025735	Locknut (#10-32)	1	1	$2.60		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	47565X057	Bushing (7/32 x 3/8 x 11/32")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	1031469	NLA - Handle, Release, Black - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	1031470	NLA - Handle, Release, Black - Left	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-30.
B	For use on left elevating legrest.
C	For use on right elevating legrest.

Catalog Literature

Parts Books for 9000 Jymni™
