EQUIPMENT CA Site

1

See Chart

Added to Cart

Arm Style		16-19" Deep Seat Frames Right		16-19" Deep Seat Frames Left		20" and Deeper Seat Frames Right		20" and Deeper Seat Frames Left
Desk		1068566- NLA		1068567- NLA		1068540- NLA		1068541- NLA
Full		1068559- NLA		1068560- NLA		1068528- NLA		1068529- NLA

Create/add to Wishlist

#1 Arms Less Pad

N/A

Create/add to Wishlist

2

1117328

Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W)

1

$76.00

A

Create/add to Wishlist

2

1110818

Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W) (Pair)

2

1

$147.00

Create/add to Wishlist

2

1117327

Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W)

1

$68.00

A

Create/add to Wishlist

2

1110817

Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W) (Pair)

2

1

$133.00

Create/add to Wishlist

3

1068564

Tube, Arm, Desk Length, Black - Right (16-19" D)

1

Create/add to Wishlist

3

1068565

NLA - Tube, Arm, Desk Length, Black - Left (16-19" D)

1

N/A

Create/add to Wishlist

3

1068414

NLA - Tube, Arm, Desk Length, Long, Black - Right (20" and Deeper)

1

N/A

Create/add to Wishlist

3

1068415

NLA - Tube, Arm, Desk Length, Long, Black - Left (20" and Deeper)

1

N/A

Create/add to Wishlist

3

1068490

Tube, Arm, Full Length, Black - Right (16-19"D)

1

Create/add to Wishlist

3

1068491

NLA - Tube, Arm, Full Length, Black - Left (16 - 19"D)

1

N/A

Create/add to Wishlist

3

1068473

NLA - Tube, Arm, Full Length, Long, Black - Right (20" and Deeper)

1

N/A

Create/add to Wishlist

3

1068474

NLA - Tube, Arm, Full Length, Long, Black - Left (20" and Deeper)

1

N/A

Create/add to Wishlist

4

1032244

Grip, Foam Hand (9" L)

1

$24.00

Create/add to Wishlist

5

1025729

Screw, Phillips Pan Head Tap (#8-32 x 3/8")

1

4

Create/add to Wishlist

6

1035472

NLA - Guard, Clothing, Desk Length

1

N/A

Create/add to Wishlist

6

1044572

NLA - Guard, Clothing, Full Length (16 - 19" D)

1

N/A

Create/add to Wishlist

6

1044005

NLA - Guard, Clothing, Full Length (20" and Deeper)

1

N/A

Create/add to Wishlist

7

1035065

Cover, Clothing Guard w/ Pocket, FXDESK & ADJFULL/ADJDESK

1

$114.00

Create/add to Wishlist

7

1044588

Cover, Clothing Guard with Pocket Fixed Height Full Length (20" and Deeper)

1

Create/add to Wishlist

8

1055949

Package, Screw, Phillips Pan Head (#10-32 x 1-3/8")

2

1

$12.00

Create/add to Wishlist

8

1094270

NLA - Package, Screw, Phillips Pan Head (#10-32 x 1-1/4")

2

1

N/A

B

Create/add to Wishlist

9

1065936

Plug, Pivot

1

2

$9.00

Create/add to Wishlist

10

1067734

Plug Button, Black (5/8")

1

2

$9.00

Create/add to Wishlist

11

7930323

NLA - Package, Locknut (1/4-20)

25

1

N/A

Create/add to Wishlist

12

1068025

Clevis, Pivot

1

$40.00

Create/add to Wishlist

13

1019590

Screw, Socket Button Head (1/4-20 x 1-5/8")

1

$9.00

Create/add to Wishlist

14

1068039

Pin, Pull

1

$14.00

Create/add to Wishlist

15

1068488

Kit, Swingaway Armrest Mounting Hardware

1

$59.00

Note Code	Definition
A	As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs with screws for chairs serviced before 1/3/02.
B	For Black Urethane Waterfall Armpads only.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

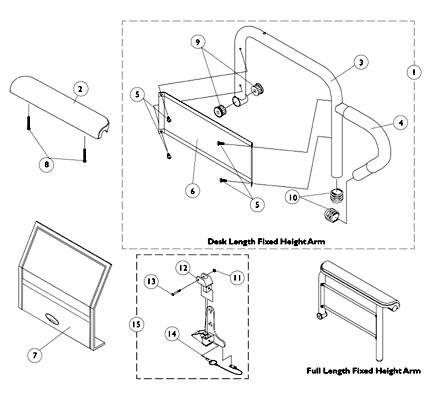

Arms - Fixed Height
