1

1027095

Plug Button, Black (7/8")

1

2

$10.00

Create/add to Wishlist

2

1052997

NLA - Headrest Tube Assembly, Black - Right

1

N/A

Create/add to Wishlist

2

1052998

NLA - Headrest Tube Assembly, Black - Left

1

N/A

Create/add to Wishlist

3

See Chart

Added to Cart

Back Height	14" W Right	14" W Left	16" W Right	16" W Left	18 - 20" W Right	18 - 20" W Left
18" H	1053272- NLA	1053273- NLA	1052079	1052080	1052089	1052090
20" H	1053274- NLA	1053275- NLA	1052081	1052082	1052091	1052092
22" H	1053276- NLA	1053277- NLA	1052083	1052084	1052093	1052094
24" H	1053278- NLA	1053279- NLA	1052085	1052086	1052095	1052096
26" H	1053280- NLA	1053281- NLA	1052087	1052088	1052097	1052098

Create/add to Wishlist

Item #3 - Back Cane with Grip

N/A

Create/add to Wishlist

4

1050214

Cable with Trigger

1

2

B ,F

Create/add to Wishlist

4

1050215

Cable with Trigger

1

2

$107.00

B ,G

Create/add to Wishlist

4

1050216

Cable with Trigger

1

2

$68.00

B ,H

Create/add to Wishlist

5

1026032

Washer, Nylon (11/32 x 11/16 x 1/16")

1

4

Create/add to Wishlist

6

1050153

Screw, Shoulder Hex Socket Head (5/16 x 7/8", 1/4-20)

1

2

$9.00

Create/add to Wishlist

7

1050154

Cylinder, Lock, Recline

1

2

$165.00

D

Create/add to Wishlist

7

1050306

Cylinder, Lock

1

2

$165.00

E

Create/add to Wishlist

8

1050136

Pivot, Block

1

2

Create/add to Wishlist

9

1062604

Screw, Shoulder Hex Socket (3/8 x 1-1/4", 5/16-18)

1

4

$9.00

Create/add to Wishlist

10

1050293

Bar, Spreader, Black (14-20" W)

1

Create/add to Wishlist

11

1024713

Spring, Torsion w/ Button

1

2

Create/add to Wishlist

12

1025714

Screw, Phillips Pan Head (#10-32 x 1-1/8")

1

$9.00

Create/add to Wishlist

12

1091417

NLA - Screw, Phillips Pan Head (#10-24 x 1-1/4")

1

2

N/A

C

Create/add to Wishlist

13

1021260

Tie Wrap (5-5/8" L)

1

6

$9.00

Create/add to Wishlist

14

1025736

Locknut (1/4-20)

1

$8.00

Create/add to Wishlist

15

1026907

Washer (1/4 x 1/2 x 1/16")

1

2

$8.00

Create/add to Wishlist

16

1026158

Locknut (5/16-18)

1

4

$9.00

Create/add to Wishlist

17

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

4

$9.00

Create/add to Wishlist

18

1062774

NLA - Switch, Limit, Assembly

1

N/A

A

Create/add to Wishlist

19

1008525

NLA - Washer, Internal Tooth Lock (#4-40)

1

5

N/A

Create/add to Wishlist

20

1025116

NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")

1

5

N/A

Create/add to Wishlist

21

1024001

Sensor, Actuator Switch

1

$29.00

Create/add to Wishlist

22

1050310

NLA - Clamp, Cable

1

N/A

Create/add to Wishlist

23

1021260

Tie Wrap (5-5/8" L)

1

$9.00

Note Code	Definition
A	Includes Items 19-23
B	When ordering cable assembly #1050215 or #1050216 for chairs made before 8/4/99 or #1050214 for chairs made before 2/1/00, item 12 #1091417 must be ordered as well.
C	Lever fastener changed 8/4/99 from a "10-32 threaded insert" to a "10-24 tinnerman nut" for item 4 #1050215 and #1050216 and 2/1/00 for #1050214.
D	Ranger II Basic - Standard 250 lb. maximum capacity.
E	Ranger II Standard - Heavy Duty 300 lb. maximum capacity.
F	26" High Canes
G	22-24" High Canes
H	18 and 20" High Canes

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

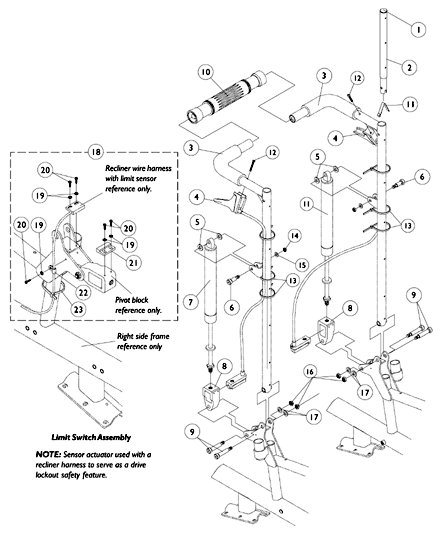

Back, Recliner Assembly
