EQUIPMENT CA Site

1

60126449

Actuator Motor w/ Bushings

1

$510.00

K

Create/add to Wishlist

1

9099

NLA - Pump

1

N/A

Create/add to Wishlist

1

9099R

NLA - Pump, Hydraulic

1

N/A

Create/add to Wishlist

1

9099P

Pump, Hydraulic

1

$419.00

Create/add to Wishlist

2

1031665

Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)

1

3

$9.00

A

Create/add to Wishlist

3

1065214

Washer, Flat (3/8 x 11/16 x 1/16")

1

$9.00

A

Create/add to Wishlist

4

1064267

Locknut (5/16-18)

1

$9.00

G

Create/add to Wishlist

5

1078980

Screw, Phillips Pan Head (#10-24 x 1/4")

1

3

$9.00

Create/add to Wishlist

6

1078284

Bracket, Battery - Electric Only

1

$66.00

D

Create/add to Wishlist

7

1078292

Mast, Electric

1

$208.00

Create/add to Wishlist

7

1078310

Mast, Hydraulic

1

Create/add to Wishlist

8

1065361

Cap, End, Black (1-1/2 x 2-1/2")

1

$9.00

Create/add to Wishlist

9

1129465

Screw, Shoulder Hex Socket Head (3/8 x 2-1/4", 5/16-18)

1

$11.00

Create/add to Wishlist

10

1177604

Pendant, Two Channel w/ Hook

1

$111.00

H

Create/add to Wishlist

11

1078276

Battery Pack, Linak

1

$324.00

D

Create/add to Wishlist

12

1078275

Controller - Electric Only

1

$182.00

D

Create/add to Wishlist

13

1078306

Bracket, Wall Mount Charger

1

$66.00

D

Create/add to Wishlist

14

1078274

Charger, Electric Only w/o Power Cord

1

$377.00

D ,L

Create/add to Wishlist

15

1079135

NLA - Cord, European - Electric Only

1

N/A

D

Create/add to Wishlist

16

1079133

Cord, Power, USA

1

$27.00

D

Create/add to Wishlist

17

1079134

NLA - Cord, UK - Electric Only

1

N/A

D

Create/add to Wishlist

18

1073698

Label, Warning, Lift, 450 Pound Capacity

1

N/A

Create/add to Wishlist

18

1073703

NLA - Label, Warning, Reliant 450 Lift - Hydraulic Only

1

N/A

Create/add to Wishlist

19

1078979

Screw, Hex Head (1/2-13 x 2-1/4")

1

$9.00

Create/add to Wishlist

20

1075653

Label, CE Marking

1

Create/add to Wishlist

21

1026174

Washer (1/2 x 7/8 x 3/64")

1

2

$8.00

Create/add to Wishlist

22

1078981

Locknut (1/2-13)

1

$9.00

Create/add to Wishlist

23

1082594

Kit, Mast & Boom - Electric

1

B

Create/add to Wishlist

23

1082595

NLA - Kit, Mast & Boom - Hydraulic

1

N/A

F

Create/add to Wishlist

24

1079815

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Charger, Electric Only w/o Power Cord	1	1
21	Bracket, Wall Mount Charger	1	1
21	Bracket, Wall Mount Charger	1	1
14	Charger, Electric Only w/o Power Cord	1	1
6	Battery Pack, Linak	1	1
20	Battery Pack, Linak	1	1
13	Bracket, Wall Mount Charger	1	1
25	Bracket, Wall Mount Charger	1	1
11	Battery Pack, Linak	1	1
20	Charger, Electric Only w/o Power Cord	1	1
2	Battery Pack, Linak	1	1
16	Cord, Power, USA	1	1
11	Battery Pack, Linak	1	1
11	Battery Pack, Linak	1	1
25	Charger, Electric Only w/o Power Cord	1	1
28	Bracket, Wall Mount Charger	1	1
2	Battery Pack, Linak	1	1
26	Bracket, Wall Mount Charger	1	1
24	Charger, Electric Only w/o Power Cord	1	1
13	Bracket, Wall Mount Charger	1	1
25	Bracket, Wall Mount Charger	1	1
28	Cord, Power, USA	1	1
24	Charger, Electric Only w/o Power Cord	1	1
16	Cord, Power, USA	1	1
21	Battery Pack, Linak	1	1
20	Battery Pack, Linak	1	1
27	Charger, Electric Only w/o Power Cord	1	1
	Cord, Power, USA	1	1
17	Cord, Power, USA	1	1
17	Cord, Power, USA	1	1
20	Charger, Electric Only w/o Power Cord	1	1
16	Cord, Power, USA	1	1
29	Cord, Power, USA	1	1
14	Charger, Electric Only w/o Power Cord	1	1
13	Bracket, Wall Mount Charger	1	1
28	Cord, Power, USA	1	1

Kit, Charger - USA Only

1

$818.00

E

Create/add to Wishlist

25

1129466

Spacer (3/8 x 5/8 x 11/32")

1

$9.00

Create/add to Wishlist

26

1028769

Locknut (5/16-18)

1

$9.00

G

Create/add to Wishlist

27

1130234

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Sheet, Label 450 Lift (Spanish)	1	1
	Instruction Sheet, Label Kit (Spanish)	1	1

NLA - Kit, Label Warning - Bolt Mast w/Instruction - 450 Lift (Spanish)

1

N/A

C

Create/add to Wishlist

27

1130233

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Instruction Sheet, Label Kit (French/Canadian)	1	1
	Sheet, Label 450 Lift (French-Canadian)	1	1

NLA - Kit, Label Warning - Bolt Mast w/Instruction - 450 Lift (French/Canadian)

1

C

Create/add to Wishlist

28

1161593

Package, Rubber Clip

10

1

$63.00

H

Create/add to Wishlist

1165876

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Locknut (5/16-18)	1	1
6	Bracket, Battery - Electric Only	1	1
8	Cap, End, Black (1-1/2 x 2-1/2")	1	1
25	Spacer (3/8 x 5/8 x 11/32")	1	1
	Label, Warning Bolt Mast	1	1
9	Screw, Shoulder Hex Socket Head (3/8 x 2-1/4", 5/16-18)	1	1
26	Locknut (5/16-18)	1	1
29	Bushing (3/8 x 15/32 x 1-3/32")	1	1
	Insert, Carton	1	1
	Carton	1	1
3	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
7	Mast, Electric	1	1
19	Screw, Hex Head (1/2-13 x 2-1/4")	1	1
20	Label, CE Marking	1	1
	Label, Year of Manufacture	1	1
2	Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)	1	1
5	Screw, Phillips Pan Head (#10-24 x 1/4")	1	3
	Insert, Carton	1	5
18	Label, Warning, Lift, 450 Pound Capacity	1	1
21	Washer (1/2 x 7/8 x 3/64")	1	2
22	Locknut (1/2-13)	1	1

Mast Assembly w/ Attaching Hardware

1

$241.00

C ,D ,I

Create/add to Wishlist

1133691

Package, Emergency Pull Pin

10

1

$68.00

C

Create/add to Wishlist

10369X000

NLA - Wrench, Allen (3/16")

1

N/A

C

Create/add to Wishlist

1083039

NLA - Cover, Actuator, Padded with Instructions (Electric Lifts Only)

1

N/A

C ,D

Create/add to Wishlist

1079656

NLA - Label, Warning - EUR

1

N/A

C ,D

Note Code	Definition
A	After 3/99 it has been determined part number 1025704 is no longer required in the Mast to Actuator Assembly.
B	This item does not include items 16 & 18; these items are not needed in the U.S.
C	Not Shown. On 3/19/2010, the pull pin was replaced with a pull grip that is not serviceable.
D	Electric Only.
E	Includes items 11, 13, 14, and 16.
F	Excludes item 7 (Electric Mast) and 11 - 18.
G	After 8/21/06 the quantity for Locknut 1064267 item 4 changed to Qty 1 for the Mast Assembly. Locknut 1028769 Item 28 was added to the Mast Assembly.
H	Slip over Clip on Handset to provide stable positioning for Handset.
I	Includes items 2, 3-9, 18, 19, 20, 21, 22, 25, 26, 29, Labels, and Cartons.
J	As of 3/19/2010, the pull pin changed to a pull grip.
K	Part #1078273 Actuator Motor is No Longer Available and replaced with part #60126449 Actuator Motor that now includes press-fitted Bushings.
L	Power Cord not included with Charger.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

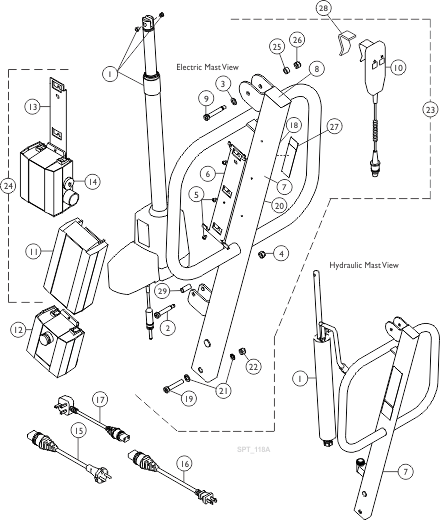

Mast Assembly - RPL/ RPA 450-1 and RHL/ RHA 450-1
