Shrouds, Top Shroud w/ Common Harness and Circuit Breaker

Print this page

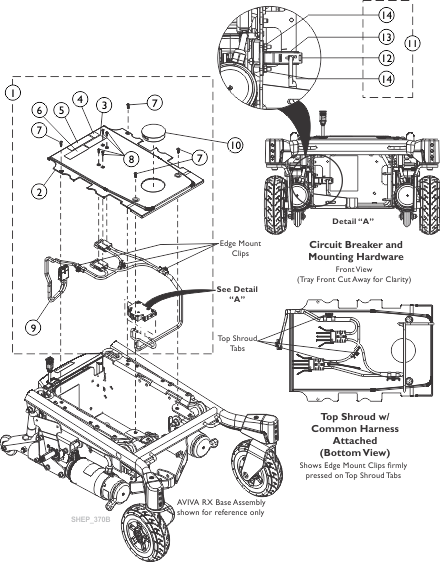

Shrouds, Top Shroud w/ Common Harness and Circuit Breaker

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

60127911

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Shroud, Top, Wide	1	1
5	Label, Information, Address, Read Manual	1	1
8	Screw, Thread Forming (#8-18 x 1/2")	1	4
7	Screw, Socket Button Head Cap (M5 x 16)	1	4
3	Label, Prop 65	1	1
6	Label, Patent	1	1
9	Harness, Common, GP24	1	1
	Sheet, Insert Parts Service	1	1
4	Label, MR Unsafe	1	1

Kit, Top Shroud w/ Harness and Hardware, Wide

1

1

A

Create/add to Wishlist

Create/add to Wishlist

10

60127948

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Cap, Locking Plug	1	1
	Sheet, Insert Parts Service	1	1

Kit, Locking Plug Cap

1

1

Create/add to Wishlist

Create/add to Wishlist

11

60127917

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Bracket, Circuit Breaker	1	1
12	Circuit Breaker, 63A	1	1
14	Nut (M6 x 1mm)	1	2
	Sheet, Insert Parts Service	1	1

Kit, Circuit Breaker, 63A/C and Hardware

1

1

B

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-9. Edge Mount Clips come attached to the Harness and not sold separately.
B	Includes items 12-14.

Catalog Literature

Parts Books for AVIVA® STORM RX™ SRX-20R, SRX-20SP and SRX-20MP Base Assembly For Motion Concepts Ultra Low Maxx Power Positioning System
