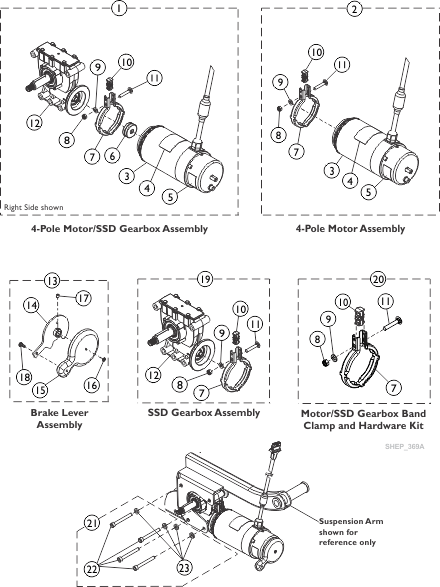

Motors, 4-Pole, SSD Gearbox and Mounting Hardware
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 |
60127909
|
Kit, 4-Pole Low Speed Motor/18:1 SSD Gearbox Assembly - Left | 1 | 1 | A ,G ,H |
Create/add to WishlistCreate/add to Wishlist |
|
| 1 |
60127940
|
Kit, 4-Pole 5K Motor/23:1 SSD Gearbox Assembly - Right | 1 | 1 |
$665.00 |
A ,G ,H ,I |
Create/add to WishlistCreate/add to Wishlist |
| 1 |
60127941
|
Kit, 4-Pole 5K Motor/23:1 SSD Gearbox Assembly - Left | 1 | 1 | A ,G ,H ,I |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 |
60127906
|
Kit, Motor Assembly, 4-Pole Low Speed | 1 | 1 | B ,G ,H |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 |
60127939
|
Kit, Motor Assembly 4-Pole 5K | 1 | 1 |
$400.00 |
B ,G ,H ,I |
Create/add to WishlistCreate/add to Wishlist |
| 13 |
60129163
|
Kit, Brake Lever Handle and Cap w/ Hardware (Pair) | 1 | 1 | C |
Create/add to WishlistCreate/add to Wishlist |
|
| 19 |
1179219
|
Kit, SSD Gearbox Assembly, 18:1 - RWD/FWD-Right & CWD-Left | 1 | 1 |
$696.00 |
D ,G |
Create/add to WishlistCreate/add to Wishlist |
| 19 |
1179220
|
Kit, SSD Gearbox Assembly, 18:1 - RWD/FWD-Left & CWD-Right | 1 | 1 |
$696.00 |
D ,G |
Create/add to WishlistCreate/add to Wishlist |
| 19 |
1179221
|
Kit, SSD Gearbox Assembly, 23:1 - RWD/FWD-Right & CWD-Left | 1 | 1 |
$575.00 |
D ,G ,I |
Create/add to WishlistCreate/add to Wishlist |
| 19 |
1179222
|
Kit, SSD Gearbox Assembly, 23:1 - RWD/FWD-Left & CWD-Right | 1 | 1 |
$575.00 |
D ,G ,I |
Create/add to WishlistCreate/add to Wishlist |
| 20 |
1168884
|
Kit, Motor/SSD Gearbox Band Clamp and Hardware | 1 | 1 |
$26.00 |
E |
Create/add to WishlistCreate/add to Wishlist |
| 21 |
60127914
|
Kit, Motor/SSD Gearbox Mounting Hardware | 1 | 1 | F |
Create/add to WishlistCreate/add to Wishlist |
|
| 1180609 | Package, Grease, Super Lube (1cc Tube) (Pkg. of 10) | 10 | 1 | J |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 3-12, Super Lube Grease and Instruction Sheet. |
| B | Includes items 3-5 and 7-11, Super Lube Grease and Instruction Sheet |
| C | Includes items 14-18. |
| D | Includes items 7-12, Super Lube Grease and Instruction Sheet |
| E | Includes items 7-11, Super Lube Grease and Instruction Sheet |
| F | Includes items 22, 23 and Super Lube Grease. |
| G | Before placing an order, it is recommended to call Invacare's Technical Service Department at (1-800-832-4707) to verify if the Motor, SSD Gearbox or the Motor/SSD Gearbox Assembly is needed. |
| H | When installing a new Motor or Motor/Gearbox Assembly, the Motor will need to be calibrated with Invacare Tech. Services. A LAK is required to complete the calibration. |
| I | Used for HSMTR High Speed Motor Option. |
| J | Not Shown. Super Lube Grease is applied to the Gearbox Output Shaft and sold in a package of 10. |
