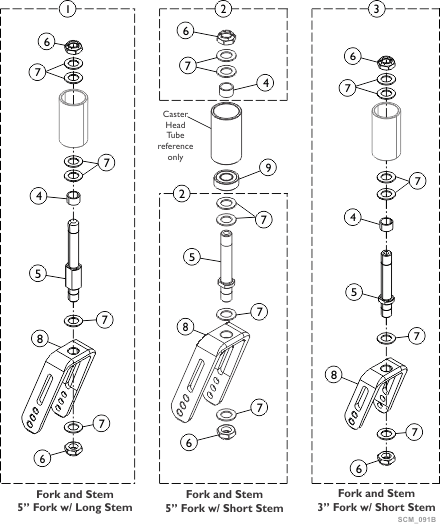

Fork Assembly (Options 4SPLT, 4ALUM2, 51DC, 5ALUM2, 5SPLT, 61DC, 6ALUM2)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1192573

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Spacer (1/2 x 5/8 x 3/8")	1	1
5	Stem, Fork, Long	1	1
6	Locknut (1/2-20)	1	2
7	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
8	NLA - Fork, Caster	1	1

Kit, Fork (5") w/ Long Stem

$59.00

Create/add to Wishlist

1118545

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Spacer (1/2 x 5/8 x 3/8")	1	1
5	Stem, Fork, Short	1	1
6	Locknut (1/2-20)	1	2
7	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
8	NLA - Fork, Caster	1	1
	NLA - Fork, Caster	1	1
	Stem, Fork, Short	1	1
2	Locknut (1/2-20)	1	2
3	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
4	Spacer (1/2 x 5/8 x 3/8")	1	1
	NLA - Fork, Caster	1	1
	Stem, Fork, Short	1	1
2	Locknut (1/2-20)	1	2
3	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
4	Spacer (1/2 x 5/8 x 3/8")	1	1
	NLA - Fork, Caster	1	1
	Stem, Fork, Short	1	1
3	Locknut (1/2-20)	1	2
4	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
5	Spacer (1/2 x 5/8 x 3/8")	1	1
	NLA - Fork, Caster	1	1
	Stem, Fork, Short	1	1
2	Locknut (1/2-20)	1	2
3	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
4	Spacer (1/2 x 5/8 x 3/8")	1	1

Kit, Fork (5") w/ Short Stem

$125.00

Create/add to Wishlist

40117X021

Bearing (1/2" I.D. x 1-1/8" O.D.)

$16.00

Create/add to Wishlist

1192574

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Spacer (1/2 x 5/8 x 3/8")	1	1
5	Stem, Fork, Short	1	1
6	Locknut (1/2-20)	1	2
7	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
8	Fork, Caster	1	1

Kit, Fork (3") w/ Short Fork

$59.00

Create/add to Wishlist

1088523

Plug Button, Head Tube, Black

$18.00

Create/add to Wishlist

See Chart

Added to Cart

Caster Option

Rear Wheel Option

Seat to Floor Dimensions

Stem Length

Part Number

4SPLT 4ALUM2

12", 16", 18" (All Tires)

12-1/2, 13"

3" Fork w/ Short Stem

1192574

Part/Kit Description	Qty/Pkg	Qty/Asbly
Spacer (1/2 x 5/8 x 3/8")	1	1
Stem, Fork, Short	1	1
Washer, Plain (1/2 x 7/8 x 1/16)	1	6
Fork, Caster	1	1
Locknut (1/2-20)	1	2

MSRP: $59.00

N/A

4SPLT 4ALUM2

12", 16", 18" (All Tires)

13-1/2, 14-1/2"

5" Fork w/ Short Stem

Note-A

1118545

Part/Kit Description	Qty/Pkg	Qty/Asbly
Spacer (1/2 x 5/8 x 3/8")	1	1
Stem, Fork, Short	1	1
Washer, Plain (1/2 x 7/8 x 1/16)	1	6
NLA - Fork, Caster	1	1
Locknut (1/2-20)	1	2

MSRP: $125.00

Note-A

40117X021

MSRP: $16.00

4SPLT 4ALUM2

12", 16", 18" 20", 22" (All Tires)

15", 15-1/2", 16"

5" Fork w/ Long Stem

1192573

Part/Kit Description	Qty/Pkg	Qty/Asbly
Spacer (1/2 x 5/8 x 3/8")	1	1
Stem, Fork, Long	1	1
Washer, Plain (1/2 x 7/8 x 1/16)	1	6
NLA - Fork, Caster	1	1
Locknut (1/2-20)	1	2

MSRP: $59.00

N/A

51DC 5ALUM2 5SPLT

12", 16", 18" (All Tires)

13-1/2"

3" Fork w/ Short Stem

1192574

Part/Kit Description	Qty/Pkg	Qty/Asbly
Spacer (1/2 x 5/8 x 3/8")	1	1
Stem, Fork, Short	1	1
Washer, Plain (1/2 x 7/8 x 1/16)	1	6
Fork, Caster	1	1
Locknut (1/2-20)	1	2

MSRP: $59.00

N/A

51DC 5ALUM2 5SPLT

12", 16", 18" (All Tires)

14", 15"

5" Fork w/ Short Stem

Note-A

1118545

Part/Kit Description	Qty/Pkg	Qty/Asbly
Spacer (1/2 x 5/8 x 3/8")	1	1
Stem, Fork, Short	1	1
Washer, Plain (1/2 x 7/8 x 1/16)	1	6
NLA - Fork, Caster	1	1
Locknut (1/2-20)	1	2

MSRP: $125.00

Note-A

40117X021

MSRP: $16.00

51DC 5ALUM2 5SPLT

12", 18", 20" 22", 24" (All Tires)

15-1/2", 16", 16-1/2"

5" Fork w/ Long Stem

1192573

Part/Kit Description	Qty/Pkg	Qty/Asbly
Spacer (1/2 x 5/8 x 3/8")	1	1
Stem, Fork, Long	1	1
Washer, Plain (1/2 x 7/8 x 1/16)	1	6
NLA - Fork, Caster	1	1
Locknut (1/2-20)	1	2

MSRP: $59.00

N/A

61DC 6ALUM2

12", 18", 20" 22", 24" (All Tires)

14-1/2", 16"

5" Fork w/ Short Stem

Note-A

1118545

Part/Kit Description	Qty/Pkg	Qty/Asbly
Spacer (1/2 x 5/8 x 3/8")	1	1
Stem, Fork, Short	1	1
Washer, Plain (1/2 x 7/8 x 1/16)	1	6
NLA - Fork, Caster	1	1
Locknut (1/2-20)	1	2

MSRP: $125.00

Note-A

40117X021

MSRP: $16.00

61DC 6ALUM2

12", 18", 20" 22", 24" (All Tires)

16-1/2", 17"

5" Fork w/ Long Stem

1192573

Part/Kit Description	Qty/Pkg	Qty/Asbly
Spacer (1/2 x 5/8 x 3/8")	1	1
Stem, Fork, Long	1	1
Washer, Plain (1/2 x 7/8 x 1/16)	1	6
NLA - Fork, Caster	1	1
Locknut (1/2-20)	1	2

MSRP: $59.00

N/A

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	To order a complete Fork Assembly, order both part numbers 1118545 and 40117X021.

Fork Assembly - For 4", 5", 6" Casters - Where Used

N/A

Assembly Part Notes

Note Code	Definition
A	Kit includes items 4, 5, 6, 7 and item 8.
B	Not Shown in illustration.
C	Kit includes items 4, 5, 6, 7 and item 8. Must order item #9 as well to make up a complete Fork Kit (5") w/ Short Fork Stem.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
