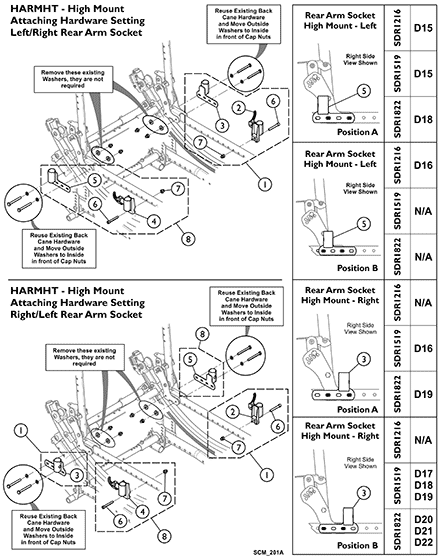

Arms - Non-Flip Back Attaching Hardware (HARMHT Option)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1164104

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Socket, Arm, Rear, Black - Right	1	1
3	Socket, Arm, Front, Black - Right	1	1
6	NLA - Screw (1/4-20 x 1-3/4")	1	1
7	Nut, Hex with Nylon Cap (1/4-20)	1	1
2	Socket, Arm, Rear, Black - Right	1	1
3	Socket, Arm, Front, Black - Right	1	1
6	NLA - Screw (1/4-20 x 1-3/4")	1	1
7	Nut, Hex with Nylon Cap (1/4-20)	1	1

Kit, Arm Attaching Hardware - Right

$43.00

A ,C

Create/add to Wishlist

1164105

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Socket, Arm, Rear, Black - Left	1	1
5	Socket, Arm, Front, Black - Left	1	1
6	NLA - Screw (1/4-20 x 1-3/4")	1	1
7	Nut, Hex with Nylon Cap (1/4-20)	1	1
4	Socket, Arm, Rear, Black - Left	1	1
5	Socket, Arm, Front, Black - Left	1	1
6	NLA - Screw (1/4-20 x 1-3/4")	1	1
7	Nut, Hex with Nylon Cap (1/4-20)	1	1

Kit, Arm Attaching Hardware - Left

$43.00

B ,C

Create/add to Wishlist

See Chart

Added to Cart

HARMHT Option

Rear Arm Socket Left (Item 5)

Seat Depth (In.)

Arm Option

1164105

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Hex with Nylon Cap (1/4-20)	1	1
Socket, Arm, Rear, Black - Left	1	1
Socket, Arm, Front, Black - Left	1	1
NLA - Screw (1/4-20 x 1-3/4")	1	1

MSRP: $43.00

SDR1216

D15

Left

SDR1519

D15

Position A

SDR1822

D18

1164105

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Hex with Nylon Cap (1/4-20)	1	1
Socket, Arm, Rear, Black - Left	1	1
Socket, Arm, Front, Black - Left	1	1
NLA - Screw (1/4-20 x 1-3/4")	1	1

MSRP: $43.00

SDR1216

D16

Left

SDR1519

N/A

Position B

SDR1822

N/A

Item 5 Mounted on Right Side

FXDESK - FXFULL ADJDESK - ADJFULL

HARMHT Option

Rear Arm Socket Right (Item 3)

Seat Depth (In.)

Arm Option

1164104

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Hex with Nylon Cap (1/4-20)	1	1
Socket, Arm, Rear, Black - Right	1	1
Socket, Arm, Front, Black - Right	1	1
NLA - Screw (1/4-20 x 1-3/4")	1	1

MSRP: $43.00

SDR1216

N/A

Right

SDR1519

D16

Position A

SDR1822

D19

1164104

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Hex with Nylon Cap (1/4-20)	1	1
Socket, Arm, Rear, Black - Right	1	1
Socket, Arm, Front, Black - Right	1	1
NLA - Screw (1/4-20 x 1-3/4")	1	1

MSRP: $43.00

SDR1216

N/A

Right

SDR1519

D17, D18, D19

Position B

SDR1822

D20, D21, D22

Item 3 Mounted on Right Side

FXDESK - FXFULL ADJDESK - ADJFULL

Create/add to Wishlist

Arm Settings and Hardware (HARMHT Option)

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit includes items 2, 3, 6, and item 7. Parts are not sold separately.
B	Kit includes items 4, 5, 6, and item 7. Parts are not sold separately.
C	For further information, see "Arm Settings and Hardware (HARMHT Option)" Chart.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
