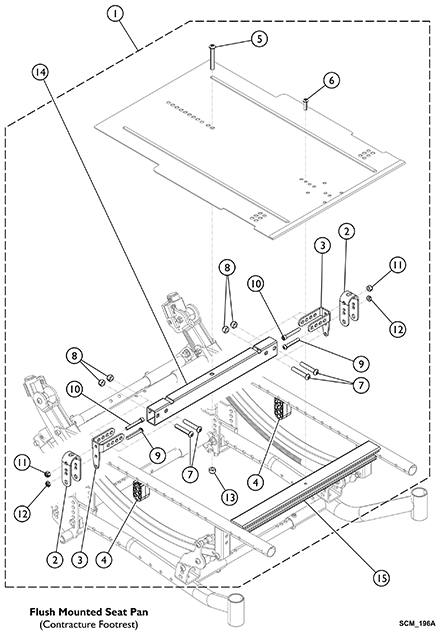

Seat Pans - Mounting Hardware - Flush Mount w/ Contracture Footrest Option (12 - 22" D)

Print this page

Seat Pan Mtg. Hdwr. - Bi-Lateral Contracture (12

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1166086

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bracket, Seat Pan	1	2
3	Bracket, Seat Pan, Adjustable	1	2
4	Spacer, Block, Black	1	2
5	Screw, Button Head, Socket (5/16-18 x 2-1/4")	1	1
6	Screw, Socket Button Head (1/4-20 x 7/8")	1	1
7	Screw, Socket Button Head (5/16-24 x 1-3/4")	1	4
8	Locknut (5/16-24)	1	4
9	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	2
10	Screw, Socket Head (1/4-20 x 1-3/4")	1	2
11	Locknut (1/4-20)	1	2
12	Locknut, Thin (1/4-20)	1	2
13	Locknut (5/16-18)	1	1

Kit, Seat Pan Mounting Hardware, Flush Bi-Lateral Contracture (12" - 24")

Create/add to Wishlist

See Chart

Added to Cart

Seat Mounting Type	Seat Frame Width	Part Number
Flush Mounted	12" - 13"	1165779
Flush Mounted	14" - 15"	1165780 MSRP: $19.00
Flush Mounted	16" - 17"	1165781 MSRP: $19.00
Flush Mounted	18" - 19"	1165782 MSRP: $19.00
Flush Mounted	20" - 21"	1165783 MSRP: $19.00
Flush Mounted	22" - 23"	1165784 MSRP: $19.00
Flush Mounted	24"	1165785 MSRP: $19.00

Create/add to Wishlist

#14. Seat Pan Rear Crossbrace Tube

N/A

Create/add to Wishlist

See Chart

Added to Cart

Seat Frame Width	Part Number	Seat Frame Width	Part Number	Seat Frame Width	Part Number
12"	1163810	16"	1163814	20"	1163817 MSRP: $105.00
13"	1163811	17"	1163815	21"	1163818
14"	1163812 MSRP: $95.00	18"	1163436 MSRP: $105.00	22"	1163819
15"	1163813	19"	1163816

Create/add to Wishlist

#15. Contracture Crossbrace Tube

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit includes items 2 - 13.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
