Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1166085

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bracket, Seat Pan	1	4
3	Bracket, Seat Pan, Adjustable	1	2
4	Spacer, Block, Black	1	4
5	Screw, Button Head, Socket (5/16-18 x 2-1/4")	1	1
6	Screw, Socket Button Head (5/16-24 x 1-3/4")	1	6
7	Locknut (5/16-24)	1	4
8	Locknut (5/16-18)	1	1
9	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	2
10	Screw, Socket Head (1/4-20 x 1-3/4")	1	2
11	Locknut (1/4-20)	1	2
12	Locknut, Thin (1/4-20)	1	2
13	Locknut (5/16-24)	1	1
2	Bracket, Seat Pan	1	4
3	Bracket, Seat Pan, Adjustable	1	2
4	Spacer, Block, Black	1	4
6	Screw, Socket Button Head (5/16-24 x 1-3/4")	1	6
7	Locknut (5/16-24)	1	4
8	Locknut (5/16-18)	1	1
9	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	2
10	Screw, Socket Head (1/4-20 x 1-3/4")	1	2
11	Locknut (1/4-20)	1	2
12	Locknut, Thin (1/4-20)	1	2
13	Locknut (5/16-24)	1	1
5	Screw, Button Head, Socket (5/16-18 x 2-1/4")	1	1

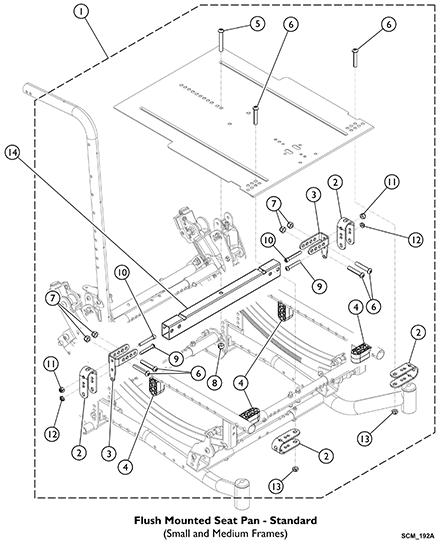

Kit, Seat Pan Mounting Hardware, Drop/Flush Mount (12" - 19" D)

$145.00

See Chart

Added to Cart

#14. Seat Pan Rear Crossbrace Tube

N/A

Note Code	Definition
A	Kit include items 2 - 13.
