Upholstery - Seat

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Part Number

Description

16" Depth Quantity Required

17"-18" Depth Quantity Required

Note-A

1076284

Single Pack Screw with Washer (#10 x 7/8") Used Before 2/3/16

Note-A

1057950

Multi Pack Screws with Washers (#10 x 7/8"") Used Before 2/3/16

1 Pkg of 8

N/A

Note-A

1050393- NLA

Multi Pack Screws with Washers (#10 x 7/8") Used Before 2/3/16

N/A

1 Pkg of 10

Note-B ,C ,C1

1054978

Multi Pack Screws and Washers (#12 x 7/8") Used After 2/2/16

1 Pkg of 10

N/A

Note-B ,C ,C1

1131378

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head (#12-14 x 7/8")	1	12
Washer (1/4 x 3/4 x 3/32")	1	12

MSRP: $34.00

Multi Pack Screws and Washers (#12 x 7/8") Used After 2/2/16

N/A

1 Pkg of 12

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
C	After 2/2/16 Crossbrace and Seat Upholstery Holes were revised to a larger size. One hole was added per side and attaching hardware Screw changed from (#10 x 7/8" Screw w/ Washer) to (#12 x 7/8" Screw).
C1	Wheelchairs manufactured Before 2/3/16 will require new Crossbraces, Seat Upholstery and (Hardware After 2/2/16) to be ordered.
A	Used Before 2/3/16.
B	Used After 2/2/16.

Hardware for Seat Upholstery

N/A

See Chart

Added to Cart

Chair Width	16" Depth	17" Depth	18" Depth
14"	8881057199- NLA	8881057206- NLA	8881057213- NLA
16"	Note-A ,A1 1016321	Note-A ,A1 1016322- NLA	Note-A ,A1 1016323- NLA
18"	Note-A ,A1 1016327	Note-A ,A1 1016328	Note-A ,A1 1016329 MSRP: $136.00
20"	Note-A ,A1 1017643	Note-A ,A1 1017646- NLA	Note-A ,A1 1017649

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	After 2/2/16 Crossbrace and Seat Upholstery Holes were revised to a larger size. One hole was added per side and attaching hardware Screw changed from (#10 x 7/8" Screw w/ Washer) to (#12 x 7/8" Screw).
A1	Wheelchairs manufactured Before 2/3/16 will require new Crossbraces, Seat Upholstery and (Hardware After 2/2/16) to be ordered.

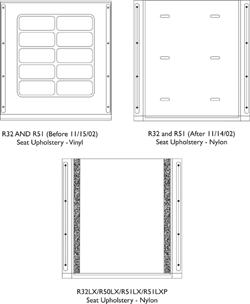

Nylon Seat Upholstery R32 and R51 (After 11/14/02)

N/A

See Chart

Added to Cart

Chair Width	16" Depth	17" Depth	18" Depth
14"	8881018200- NLA	8881052296	8881052301- NLA
16"	8881016920- NLA	8881020690- NLA	8881023360- NLA
18"	8881016918- NLA	8881020691- NLA	8881023359- NLA
20"	8881019577- NLA	8881052300- NLA	8881052307- NLA

Create/add to Wishlist

Lightweight Vinyl Seat Upholstery R32 and R51 (Before 11/15/02)

N/A

See Chart

Added to Cart

Chair Width	16" Depth	17" Depth	18" Depth
14"	Note-A ,A1 1016315	Note-A ,A1 1016316- NLA	Note-A ,A1 1016317- NLA
16"	Note-A ,A1 1016321	Note-A ,A1 1016322- NLA	Note-A ,A1 1016323- NLA
18"	Note-A ,A1 1016327	Note-A ,A1 1016328	Note-A ,A1 1016329 MSRP: $136.00
20"	Note-A ,A1 1017643	Note-A ,A1 1017646- NLA	Note-A ,A1 1017649

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	After 2/2/16 Crossbrace and Seat Upholstery Holes were revised to a larger size. One hole was added per side and attaching hardware Screw changed from (#10 x 7/8" Screw w/ Washer) to (#12 x 7/8" Screw).
A1	Wheelchairs manufactured Before 2/3/16 will require new Crossbraces, Seat Upholstery and (Hardware After 2/2/16) to be ordered.

Nylon Seat Upholstery R32LX/R50LX/R51LX/R51LXP

N/A
