Caster Option |
|
Bushing and Stem Length |
|
Rear Wheel Size |
|
Seat to Floor Height |
|
Part Number |
|
|
1259 |
|

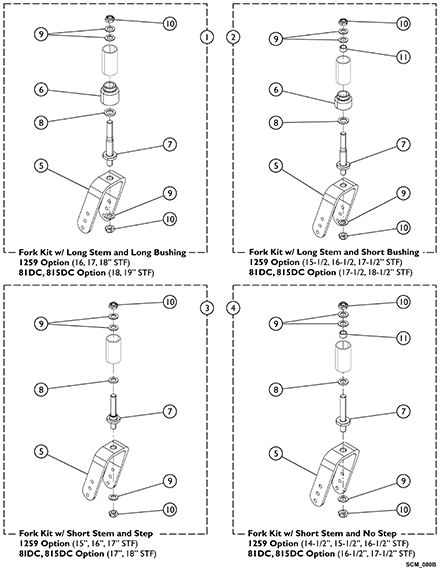

Long Stem Short Bushing |
|
12COM (Pneumatic and Flat Free) 16COM 20COM 22COM 24COM7 |
|
15-1/2", 16-1/2", 17-1/2" |
|
1192506
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Spacer (1/2 x 5/8 x 3/8") |
1 |
1 |
|
Washer, Plain (1/2 x 7/8 x 1/16) |
1 |
3 |
|
Locknut (1/2-20) |
1 |
2 |
|
Fork, Caster |
1 |
1 |
|
Bushing Stem and Bearing, Short |
1 |
1 |
|
Stem, Fork |
1 |
1 |
|
Washer (1 x 1/16 x 1/8") |
1 |
1 |
|
Instruction Sheet, Fork Replacement |
1 |
1 |
MSRP: $72.00
|
|
|
1259 |
|
Long Stem Long Bushing |
|
12COM (Pneumatic and Flat Free) 16COM 18COM 20COM 22COM 24COM7 |
|
16", 17", 18" |
|
1192508
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Washer, Plain (1/2 x 7/8 x 1/16) |
1 |
3 |
|
Locknut (1/2-20) |
1 |
2 |
|
Fork, Caster |
1 |
1 |
|
Bushing and Bearing Assembly, Long |
1 |
1 |
|
Stem, Fork |
1 |
1 |
|
Washer (1 x 1/16 x 1/8") |
1 |
1 |
|
Instruction Sheet, Fork Replacement |
1 |
1 |
MSRP: $72.00
|
|
|
1259 |
|
Short Stem w/ Step |
|
12COM (Urethane Only) 16COM 18COM 20COM |
|
15", 16", 17" |
|
1192575
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Washer, Plain (1/2 x 7/8 x 1/16) |
1 |
3 |
|
Locknut (1/2-20) |
1 |
2 |
|
Fork, Caster |
1 |
1 |
|
Stem, Fork, Short (w/ Step) |
1 |
1 |
|
Spacer (.255 x .438 x .11) |
1 |
1 |
MSRP: $62.00
|
|
|
1259 |
|
Short Stem w/ No Step |
|
12COM (Urethane Wheels) 16COM 18COM 20COM |
|
14-1/2", 15-1/2", 16-1/2" |
|
1192577
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Spacer (1/2 x 5/8 x 3/8") |
1 |
1 |
|
Washer, Plain (1/2 x 7/8 x 1/16) |
1 |
3 |
|
Locknut (1/2-20) |
1 |
2 |
|
Fork, Caster |
1 |
1 |
|
Spacer (.255 x .438 x .11) |
1 |
1 |
|
Stem, Fork, Short (w/o Step) |
1 |
1 |
|
|
|
81DC, 815DC |
|
Long Stem Short Bushing |
|
16COM 18COM 22COM 24COM7 |
|
18-1/2" |
|
1192507
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Spacer (1/2 x 5/8 x 3/8") |
1 |
1 |
|
Washer, Plain (1/2 x 7/8 x 1/16) |
1 |
3 |
|
Locknut (1/2-20) |
1 |
2 |
|
Fork, Caster, Black |
1 |
1 |
|
Bushing Stem and Bearing, Short |
1 |
1 |
|
Stem, Fork |
1 |
1 |
|
Washer (1 x 1/16 x 1/8") |
1 |
1 |
|
Instruction Sheet, Fork Replacement |
1 |
1 |
MSRP: $55.00
|
|
|
81DC, 815DC |
|
Long Stem Long Bushing |
|
16COM 18COM 22COM 24COM7 |
|
18", 19" |
|
1192509
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Washer, Plain (1/2 x 7/8 x 1/16) |
1 |
2 |
|
Locknut (1/2-20) |
1 |
3 |
|
Fork, Caster, Black |
1 |
1 |
|
Bushing and Bearing Assembly, Long |
1 |
1 |
|
Stem, Fork |
1 |
1 |
|
Washer (1 x 1/16 x 1/8") |
1 |
1 |
|
Instruction Sheet, Fork Replacement |
1 |
1 |
MSRP: $55.00
|
|
|
81DC, 815DC |
|
Short Stem w/ Step |
|
12COM |
|
17", 18" |
|
1192576
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Washer, Plain (1/2 x 7/8 x 1/16) |
1 |
3 |
|
Locknut (1/2-20) |
1 |
2 |
|
Fork, Caster, Black |
1 |
1 |
|
Stem, Fork, Short (w/ Step) |
1 |
1 |
|
Spacer (.255 x .438 x .11) |
1 |
1 |
MSRP: $55.00
|
|
|
81DC, 815DC |
|
Short Stem w/ Step |
|
16COM 20COM 22COM 24COM7 |
|
17" |
|
1192576
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Washer, Plain (1/2 x 7/8 x 1/16) |
1 |
3 |
|
Locknut (1/2-20) |
1 |
2 |
|
Fork, Caster, Black |
1 |
1 |
|
Stem, Fork, Short (w/ Step) |
1 |
1 |
|
Spacer (.255 x .438 x .11) |
1 |
1 |
MSRP: $55.00
|
|
|
81DC, 815DC |
|
Short Stem w/ No Step |
|
12COM 20COM 22COM 24COM7 |
|
16-1/2", 17-1/2" |
|
1192578
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Spacer (1/2 x 5/8 x 3/8") |
1 |
1 |
|
Washer, Plain (1/2 x 7/8 x 1/16) |
1 |
3 |
|
Locknut (1/2-20) |
1 |
2 |
|
Fork, Caster, Black |
1 |
1 |
|
Spacer (.255 x .438 x .11) |
1 |
1 |
|
Stem, Fork, Short (w/o Step) |
1 |
1 |
MSRP: $55.00
|
|
|
81DC, 815DC |
|
Short Stem w/ No Step |
|
16COM |
|
17-1/2" |
|
1192578
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Spacer (1/2 x 5/8 x 3/8") |
1 |
1 |
|
Washer, Plain (1/2 x 7/8 x 1/16) |
1 |
3 |
|
Locknut (1/2-20) |
1 |
2 |
|
Fork, Caster, Black |
1 |
1 |
|
Spacer (.255 x .438 x .11) |
1 |
1 |
|
Stem, Fork, Short (w/o Step) |
1 |
1 |
MSRP: $55.00
|
|
