Arms - Flip Back Attaching Hardware

Print this page

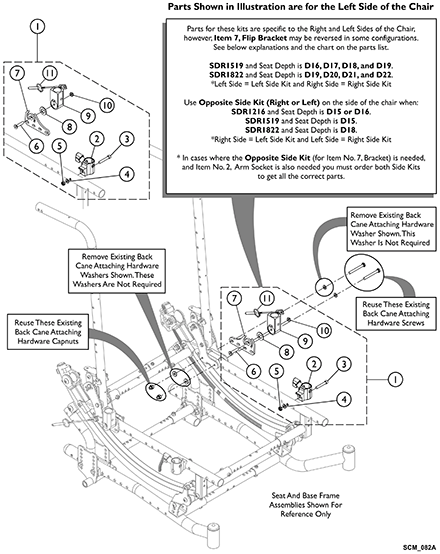

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Seat Depth Range

Seat Depth

Right Side Kit Part Number

Left Side Kit Part Number

Same Side Kits

SDR1519

D16, D17 D18, D19

1164106

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (1/4-28)	1	1
NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
Bracket, Flip Back Arm, Black - Right	1	1
Arm Socket Assembly, Black - Right	1	1
Bracket, Cup, Flip Back Arm, Black	1	1
Faspin, Lanyard .25 w/ 4"	1	1
Locknut, Thin (1/4-20)	1	1
NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1

MSRP: $151.00

1164107

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (1/4-28)	1	1
NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
Bracket, Flip Back Arm, Black - Left	1	1
Arm Socket Assembly, Black - Left	1	1
Bracket, Cup, Flip Back Arm, Black	1	1
Faspin, Lanyard .25 w/ 4"	1	1
Locknut, Thin (1/4-20)	1	1
NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1

MSRP: $151.00

SDR1822

D19, D20 D21, D22

1164106

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (1/4-28)	1	1
NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
Bracket, Flip Back Arm, Black - Right	1	1
Arm Socket Assembly, Black - Right	1	1
Bracket, Cup, Flip Back Arm, Black	1	1
Faspin, Lanyard .25 w/ 4"	1	1
Locknut, Thin (1/4-20)	1	1
NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1

MSRP: $151.00

1164107

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (1/4-28)	1	1
NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
Bracket, Flip Back Arm, Black - Left	1	1
Arm Socket Assembly, Black - Left	1	1
Bracket, Cup, Flip Back Arm, Black	1	1
Faspin, Lanyard .25 w/ 4"	1	1
Locknut, Thin (1/4-20)	1	1
NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1

MSRP: $151.00

Opposite Side Kits

SDR1216

D15, D16

1164107

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (1/4-28)	1	1
NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
Bracket, Flip Back Arm, Black - Left	1	1
Arm Socket Assembly, Black - Left	1	1
Bracket, Cup, Flip Back Arm, Black	1	1
Faspin, Lanyard .25 w/ 4"	1	1
Locknut, Thin (1/4-20)	1	1
NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1

MSRP: $151.00

1164106

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (1/4-28)	1	1
NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
Bracket, Flip Back Arm, Black - Right	1	1
Arm Socket Assembly, Black - Right	1	1
Bracket, Cup, Flip Back Arm, Black	1	1
Faspin, Lanyard .25 w/ 4"	1	1
Locknut, Thin (1/4-20)	1	1
NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1

MSRP: $151.00

SDR1519

D15

1164107

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (1/4-28)	1	1
NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
Bracket, Flip Back Arm, Black - Left	1	1
Arm Socket Assembly, Black - Left	1	1
Bracket, Cup, Flip Back Arm, Black	1	1
Faspin, Lanyard .25 w/ 4"	1	1
Locknut, Thin (1/4-20)	1	1
NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1

MSRP: $151.00

1164106

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (1/4-28)	1	1
NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
Bracket, Flip Back Arm, Black - Right	1	1
Arm Socket Assembly, Black - Right	1	1
Bracket, Cup, Flip Back Arm, Black	1	1
Faspin, Lanyard .25 w/ 4"	1	1
Locknut, Thin (1/4-20)	1	1
NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1

MSRP: $151.00

SDR1822

D18

1164107

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (1/4-28)	1	1
NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
Bracket, Flip Back Arm, Black - Left	1	1
Arm Socket Assembly, Black - Left	1	1
Bracket, Cup, Flip Back Arm, Black	1	1
Faspin, Lanyard .25 w/ 4"	1	1
Locknut, Thin (1/4-20)	1	1
NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1

MSRP: $151.00

1164106

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (1/4-28)	1	1
NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
Bracket, Flip Back Arm, Black - Right	1	1
Arm Socket Assembly, Black - Right	1	1
Bracket, Cup, Flip Back Arm, Black	1	1
Faspin, Lanyard .25 w/ 4"	1	1
Locknut, Thin (1/4-20)	1	1
NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1

MSRP: $151.00

Create/add to Wishlist

Flip Back Hardware - When to Use

N/A

Create/add to Wishlist

1164106

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Arm Socket Assembly, Black - Right	1	1
3	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
4	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
5	Locknut (1/4-28)	1	1
6	Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
7	Bracket, Flip Back Arm, Black - Right	1	1
8	NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
9	Bracket, Cup, Flip Back Arm, Black	1	1
10	Locknut, Thin (1/4-20)	1	1
11	Faspin, Lanyard .25 w/ 4"	1	1

Kit, Arm Attaching Hardware, Flip Back - Right

$151.00

A ,B

Create/add to Wishlist

1164107

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Arm Socket Assembly, Black - Left	1	1
3	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
4	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	1
5	Locknut (1/4-28)	1	1
6	Screw, Socket Flat Head (1/4-20 x 1-1/4")	1	1
7	Bracket, Flip Back Arm, Black - Left	1	1
8	NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	1
9	Bracket, Cup, Flip Back Arm, Black	1	1
10	Locknut, Thin (1/4-20)	1	1
11	Faspin, Lanyard .25 w/ 4"	1	1

Kit, Arm Attaching Hardware, Flip Back - Left

$151.00

A ,B

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 11.
B	In case where the Opposite Side Kit for Item. 7, Flip Bracket is needed and Item 2, Arm Socket is needed, you must order both side kits to get all the correct parts.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
