Front Riggings - Pivot/Slide Tube & 1650 - 1350 Aluminum Footplates

Print this page

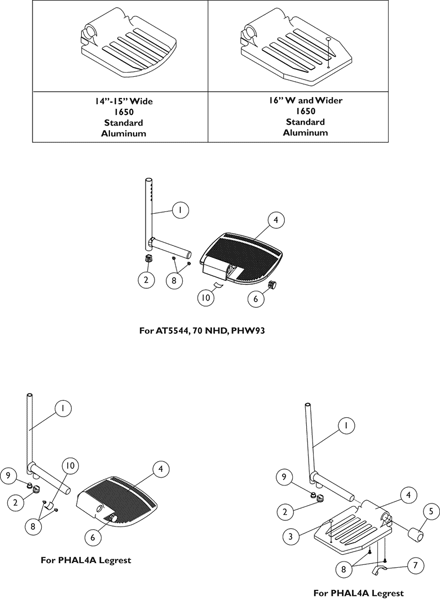

Pivot/Slide Tube and 1650, 1350 Aluminum Footplates

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1048834	Pivot/Slide Tube w/ Plug Button, Black	1	1	$45.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1098906	Pivot/Slide Tube w/ Plug Button, Black (2" Longer)	1	1	$48.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1086482	Pivot/Slide Tube w/ Plug Button, Black (4" Longer)	1	1	$45.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1041526	Pivot/Slide Tube w/ Plug Button Assembly, Chrome	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1027097	Plug Button, Black (3/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1070168	Plug, Push, Footplate	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	44200X059	Footplate, Aluminum, Small, Black (6-3/4" W x 6" L)	1	1	$52.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	44200X027	Footplate, Aluminum, Medium, Black (7-3/4" W x 6" L)	1	1	$30.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	44200X025	Footplate, Aluminum, Extra Large, Black - Right (8" W x 8-1/2" L)	1	1	$79.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	44200X026	Footplate, Aluminum, Extra Large, Black - Left (8" W x 8-1/2" L)	1	1	$79.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1016346	Cap, End, Tube, Black (7/8")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1027095	Plug Button, Black (7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1006981	Spring, Tension	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	40120X001	Screw, Phillips Pan Head (#8-32 x 3/8")	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1018133	Plug Button, Black (5/8")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1036123	Spring, Leaf	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Extra Large footplate for AT5544, 70 NHD, PHW93.
B	Standard Aluminum and Extra Large footplate for PHAL4A.
C	For 14"-15" wide seats.
D	For 16" and wider seats.

Catalog Literature

Parts Books for TDX® SI, TDX® SI-2 TDX® SI-HD
