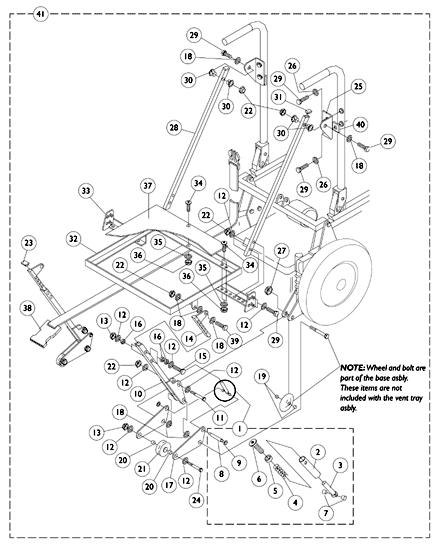

Accessories - Vent Tray Assembly - Basic Tilt & Tilt Only (After 4/30/96)

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1072928	NLA - Mechanism, Anti-Tip Spring	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	0057202	NLA - Housing, Spring	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	0057305	NLA - Plunger, Spring	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	0159200	NLA - Spring, Compression	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	0057405	NLA - Retainer, Spring Plunger	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1077248	NLA - Screw, Socket Head (1/4-20 x 1")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	0184522	NLA - Spacer, Spring Plunger	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	0184422	NLA - Shaft, Spring Plunger Retaining	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	0226300	NLA - Ring, Retaining (1/4")	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	0300102	NLA - Leg Weldment, Lower	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1037610	Screw, Hex Head (1/4-20 x 1-5/8")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	0050406	Washer, Flat (1/4 x 5/8 x 1/16")	1	24			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	7930333	Locknut (1/4-20)	25	10	$62.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	0300202	NLA - Tube, Adjustment, Lower Leg, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	0051006	NLA - Screw, Hex Head Full Thread (1/4-20 x 1-1/2")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	0050506	NLA - Lockwasher, High Collar, Split (1/4")	1	12	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	0181502	NLA - Plate, Anti-Tip Wheel	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	0050100	NLA - Washer, Nylon Flat (1/4 x 1/2 x 1/16")	1	12	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	0185500	NLA - Spacer, Anti-Tip	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	0186000	NLA - Spacer, Wheel	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1055684	NLA - Wheel, Anti-Tip 2"	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	7930323	NLA - Package, Locknut (1/4-20)	25	10	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	0062200	NLA - Plug Button, Square (3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	0052306	NLA - Screw, Hex Head (1/4-20 x 2-1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	0301302	Plate, Angle Mounting (Tilt) Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	0301202	Plate, Angle Mounting (Tilt) Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1007453	Lockwasher, Split (1/4")	1	1	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	0055006	NLA - Locknut, Low Profile (5/16-18)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	0301102	NLA - Tube, Tilt Hanger	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	0051706	NLA - Screw, Hex Head (1/4-20 x 1")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	0059800	NLA - Bearing, Nylon	1	10	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
31	0302800	NLA - Plug Button, Rectangular (1 x 1/2")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
32	0299202	NLA - Tray, Vent	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
33	0300902	NLA - Wing, Adjustment - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
33	0300802	NLA - Wing, Adjustment - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
34	1077249	NLA - Screw, Socket Head (#10-32 x 3/4")	1	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
35	0224806	NLA - Washer (#10)	1	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
36	1025735	Locknut (#10-32)	1	6	$2.60		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
37	0301619	NLA - Plate, ABS Bottom	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
38	0004900	NLA - Strap, Battery (65" Long)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
39	0053006	NLA - Screw, Hex Head (1/4-20 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
40	0049824	NLA - Spacer, Coved (1/4 x 3/4 x 7/16")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
41	0307600	NLA - Vent Tray Assembly (Includesox Hanger Assembly)	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-9
B	Includes Battery Box Hanger Assembly

Catalog Literature

Parts Books for Tarsys® Basic Tilt, Tilt Only, Recline 4XP, Recline Only, Tilt/Recline
