04. Electrical Components

Print this page

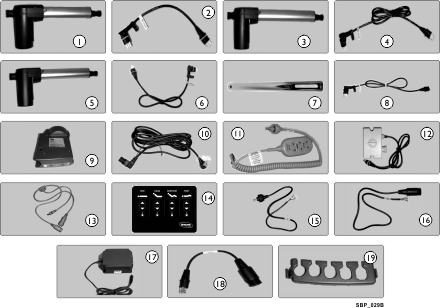

Electrical Components

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1159613	Actuator, Head (LA27-U041-01)	1	1	$402.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1116641	Cable, Head Actuator w/ Blue O-Ring	1	1	$43.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1147532	Actuator, Foot (LA27-U042-01)	1	1	$269.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1116642	Cable, Foot Actuator w/ Yellow O-Ring	1	1	$43.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1153740	Actuator, Hi/Lo - CS3 (LA27-U060-XX)	1	2	$224.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1116640	Cable, Hi-Lo Motor w/ Red O-Ring (Head End)	1	1	$43.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1149695	Extension Tube, Motor - Foot	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1147601	Cable, Hi/Lo Motor w/ Black O-Ring (Foot End)	1	1	$18.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1159601	Control Box, 120 Volts (CB6038-XX)	1	1	$414.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1165079	Power Cord	1	1	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1158391	Pendant (PNDNT-6FNC-I-2)	1	1	$150.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1157344	Box, Lockout, Neeco-Tron	1	1	$245.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1158433	Cable, T, w/o Footboard Staff Control (Standard)	1	1	$85.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1156571	Membrane, 151, CS3/5 (No Contour)	1	1	$262.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1151720	Cable, Inboard Male - J1	1	1	$21.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1151721	Cable, Inboard Female - J2	1	1	$18.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1152564	Battery, On Board Backup w/ Hardware	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1151719	Pendant Crossover Cable	1	1	$29.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1116655	Lock, Cable	1	1	$15.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Requires (2) T-Cables for Lock Out Box and Membrane.

Catalog Literature

Parts Books for ICC - Bed CS3
