03. Leg Link Assembly Components

Print this page

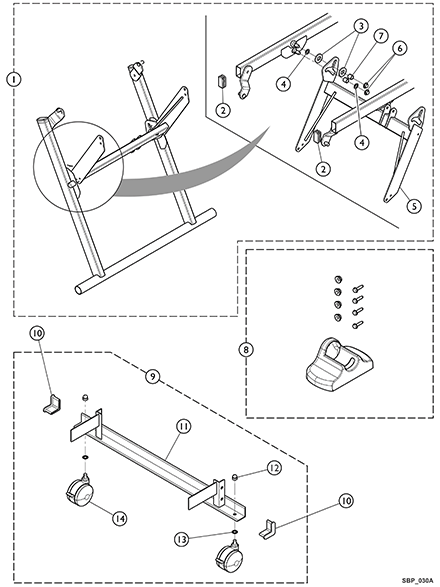

Leg Link Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1147534	Leg and Link Assembly	1	1	$211.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1186878	NLA - Plug, Universal (1" x 2" - PLG-1-2-14)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1147541	Washer, Flat - Nylon	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1147612	NLA - Washer, Flat - Plain	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1149704	NLA - Link, Stabilizer	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1147519	NLA - Nut, Push	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1145036	NLA - Bushing, Cam - Steel	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1153739	Foot Stabilizer w/ Hardware	4	16	$37.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1156547	NLA - Caster Bracket Assembly, Bed	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1156558	NLA - Cap, Angle Iron (1-1/2 x 1-1/2 x 11 ga.)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1156543	Caster Bracket, Bed	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1147523	NLA - Nut, Acorn	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1152559	Washer, Lock, Internal Tooth	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1147527	Caster, Locking (3")	1	2	$15.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 7.
B	Includes items 11 - 14.

Catalog Literature

Parts Books for ICC - Bed CS3
