1

1032246

Grip, Cane

1

$9.00

Create/add to Wishlist

2

1078287

Handle, Grey

1

$31.00

Create/add to Wishlist

3

1078289

NLA - Handle, Mount

1

N/A

Create/add to Wishlist

4

1065152

Tie Rod Assembly

1

2

$40.00

Create/add to Wishlist

5

1065215

Screw, Socket Button Head w/ Patch (5/16-18 x 3/4")

1

2

$11.00

Create/add to Wishlist

6

1064122

Spring, Compression (1 x 1-1/16 x 1/8")

1

$13.00

Create/add to Wishlist

7

1029134

Screw, Shoulder Hex Socket Head w/ Patch (1/2" x 1-1/4", 3/8-16)

1

$17.00

Create/add to Wishlist

8

1079112

Label, Attention

1

4

Create/add to Wishlist

9

1079113

Label, Year of Manufacture

1

Create/add to Wishlist

10

1078300

Cross Support

1

F

Create/add to Wishlist

11

1062419

Bushing, Flanged

1

4

$10.00

Create/add to Wishlist

12

1065214

Washer, Flat (3/8 x 11/16 x 1/16")

1

2

$9.00

Create/add to Wishlist

1

1065216

Locknut (3/8-16)

1

$9.00

Create/add to Wishlist

14

1123539

Caster Assembly, Swivel w/ Brake (5")

1

2

$58.00

D

Create/add to Wishlist

1110421

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
3	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
2	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Bushing (15/32 x 1-1/16 x 9/32")	1	2

Kit, Caster Assembly, Swivel w/ Brake (5") (Pair)

1

$96.00

C ,I

Create/add to Wishlist

15

1073884

Screw, Hex Head (1/2-13 x 1-1/4")

1

2

$9.00

Create/add to Wishlist

16

1014371

Lockwasher (1/2")

1

2

$9.00

Create/add to Wishlist

17

1073885

NLA - Washer (1/2 x 15/16 x 1/8")

1

2

N/A

Create/add to Wishlist

18

1079137

Cover, Rear Leg (Short) - Low Base/ Standard Base

1

2

$19.00

Create/add to Wishlist

19

1062424

Screw, Shoulder Hex Socket Head (1/2" x 5", 3/8-16)

1

2

$14.00

Create/add to Wishlist

20

1078979

Screw, Hex Head (1/2-13 x 2-1/4")

1

$9.00

Create/add to Wishlist

21

1026174

Washer (1/2 x 7/8 x 3/64")

1

2

$8.00

Create/add to Wishlist

22

1078981

Locknut (1/2-13)

1

$9.00

Create/add to Wishlist

23

1023632

Clip, Shroud

1

3

$9.00

Create/add to Wishlist

24

1078290

NLA - Shroud

1

N/A

H

Create/add to Wishlist

24

1156185

Shroud

1

$104.00

Create/add to Wishlist

25

1123560

Caster, Swivel Dual (3")

1

2

$76.00

E

Create/add to Wishlist

26

1070114

Cover, Front Leg (Long)

1

2

$67.00

Create/add to Wishlist

27

1095672

Leg, Adjustable, Low Base, Grey

1

2

$195.00

A ,G

Create/add to Wishlist

1095674

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Cover, Front Leg (Long)	1	2
18	Cover, Rear Leg (Short) - Low Base/ Standard Base	1	2
6	Cover, Rear Leg (Short) - Low Base/ Standard Base	1	2
26	Cover, Front Leg (Long)	1	2
4	Leg, Adjustable, Low Base, Grey	1	2
	Cover, Rear Leg (Short) - Low Base/ Standard Base	1	2
27	Leg, Adjustable, Low Base, Grey	1	2
6	Cover, Rear Leg (Short) - Low Base/ Standard Base	1	2
5	Cover, Front Leg (Long)	1	2
	Leg, Adjustable, Low Base, Grey	1	2
	Cover, Front Leg (Long)	1	2
4	Leg, Adjustable, Low Base, Grey	1	2

Kit, Legs Adjustable, Low Base, Pair with Covers

1

C

Create/add to Wishlist

1079810

Kit, Base - Low, Adjustable

1

$1,663.00

B ,C

Note Code	Definition
A	For Domestic Models only.
B	Kit includes items 1 - 19, 23 - 27, and Owner's Manual.
C	Not shown.
D	Also available as a pair, refer to part number 1110421.
E	Caster stem is threaded, no additional hardware needed.
F	Part is no longer serviceable in the field as of 7/1/10, use 1132033 as the replacement. When ordering 1132033, you should also order 1169830 and 1156176.
G	Both Legs must be replaced on Units built before 7/2/10. Order 1095674 as the replacement.
H	Part is no longer available. Order 1156185 as a replacement.
I	Bushings added 7/30/12 and used for 9805/9805P Lifts only to provide clearance for the caster to rotate freely.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

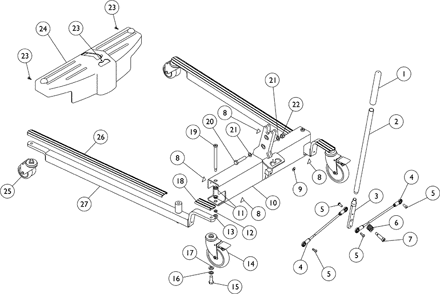

Base Assembly - RPL600-1 (Before 7/2/10)
