EQUIPMENT CA Site

1

1070021

NLA - Seat, Hygienic

1

N/A

A

Create/add to Wishlist

1

1079342

NLA - Seat, Hygienic

1

N/A

B

Create/add to Wishlist

2

1068680

NLA - Back

1

N/A

A

Create/add to Wishlist

2

1079340

NLA - Back

1

N/A

B

Create/add to Wishlist

3

1068668

NLA - Leg, Top

1

N/A

A

Create/add to Wishlist

3

1079314

NLA - Leg, Top

1

N/A

B

Create/add to Wishlist

4

1068670

NLA - Leg, Bottom

1

N/A

A

Create/add to Wishlist

4

1079315

NLA - Leg, Bottom

1

N/A

B

Create/add to Wishlist

5

1065346

NLA - Leg Extension Assembly

1

4

N/A

Create/add to Wishlist

6

1057797

Tip, Rubber, Light Grey (1-1/8")

1

4

$9.00

Create/add to Wishlist

7

1063124

Anti-Rattle, Grey (1-1/8")

1

4

Create/add to Wishlist

8

1068679

NLA - Tube, Backrest, Support without Plug Buttons

1

2

N/A

A

Create/add to Wishlist

8

1083245

NLA - Tube, Backrest Support

1

2

N/A

B

Create/add to Wishlist

9

1027096

Plug Button, Grey (7/8")

1

2

$9.00

Create/add to Wishlist

10

1094945

Button, Snap

1

4

$9.00

Create/add to Wishlist

1068666

NLA - Kit, Hardware

1

N/A

A ,D

Create/add to Wishlist

1068678

NLA - Kit, Hardware

1

N/A

A ,F ,G

Create/add to Wishlist

1074249

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
10	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
11	NLA - Washer, External Tooth Lock (1-1/4")	1	1
12	NLA - Nut, Wing (1/4-20)	1	1
8	NLA - Nut, Wing (1/4-20)	1	1
9	NLA - Washer, External Tooth Lock (1-1/4")	1	1
10	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
11	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4
12	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
11	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4
12	NLA - Nut, Wing (1/4-20)	1	1
13	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
14	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
15	NLA - Washer, External Tooth Lock (1-1/4")	1	1
11	NLA - Washer, External Tooth Lock (1-1/4")	1	1
12	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
13	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4
14	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
15	NLA - Nut, Wing (1/4-20)	1	1
13	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4

NLA - Kit, Hardware

1

N/A

B ,C ,D ,E

Create/add to Wishlist

1079912

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	NLA - Nut, Wing (1/4-20)	1	1
14	NLA - Washer, External Tooth Lock (1-1/4")	1	1
15	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
16	NLA - Screw, Phillips Pan Head (1/4-14 x 2-1/4")	1	4
17	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
18	NLA - Screw, Phillips Pan Head Tap (#8-18 x 1/2")	1	2
16	NLA - Screw, Phillips Pan Head (1/4-14 x 2-1/4")	1	4
17	NLA - Nut, Wing (1/4-20)	1	1
18	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
19	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
20	NLA - Washer, External Tooth Lock (1-1/4")	1	1
21	NLA - Screw, Phillips Pan Head Tap (#8-18 x 1/2")	1	2
16	NLA - Washer, External Tooth Lock (1-1/4")	1	1
17	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
18	NLA - Screw, Phillips Pan Head Tap (#8-18 x 1/2")	1	2
19	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
20	NLA - Nut, Wing (1/4-20)	1	1
21	NLA - Screw, Phillips Pan Head (1/4-14 x 2-1/4")	1	4

NLA - Kit, Hardware

1

N/A

B ,C ,F ,G

Create/add to Wishlist

22

18860X007

Screw, Phillips Pan Head (1/4-20 x 2-1/4")

1

4

A

Note Code	Definition
A	Before 11/2/98.
B	After 11/1/98.
C	Not Shown.
D	To be used with Model 1362.
E	Kit Includes Items 11-15.
F	To be used with Model 1363.
G	Kit Includes Items 16-21.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

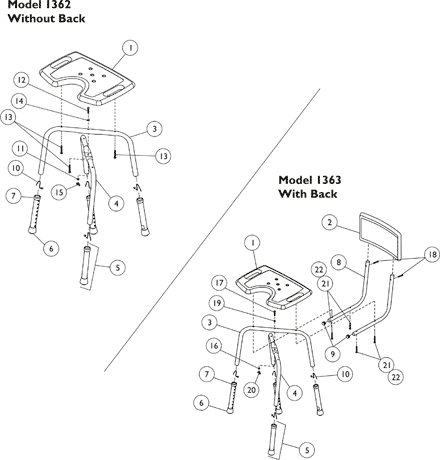

Shower Chair - Hygienic - Model 1362 & 1363
