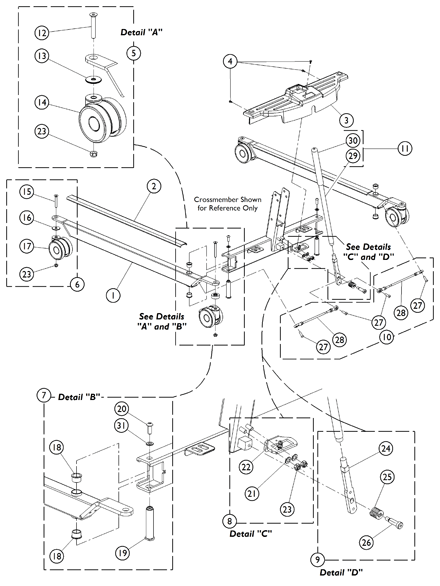

09. ILIFTEM - Manual Lift - Base

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1156139

Leg Assembly

Create/add to Wishlist

1175245

NLA - Cover, Leg Protection

N/A

Create/add to Wishlist

1156233

NLA - Shroud, Manual Base

N/A

Create/add to Wishlist

1023632

Clip, Shroud

$9.00

Create/add to Wishlist

1177622

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Screw, Socket, Countersunk Head (M10 x 1.5 x 85mm)	1	2
13	Spacer (41.3 x 10.2 x 15mm)	1	2
14	Caster, Rear Locking	1	2
23	Locknut (M10 x 1.5mm)	1	2
12	Screw, Socket, Countersunk Head (M10 x 1.5 x 85mm)	1	2
13	Spacer (41.3 x 10.2 x 15mm)	1	2
14	Caster, Rear Locking	1	2
23	Locknut (M10 x 1.5mm)	1	2
10	Screw, Socket, Countersunk Head (M10 x 1.5 x 85mm)	1	2
11	Spacer (41.3 x 10.2 x 15mm)	1	2
12	Caster, Rear Locking	1	2
21	Locknut (M10 x 1.5mm)	1	2

NLA - Kit, Rear Caster w/ Hardware, Locking (Pair)

N/A

Create/add to Wishlist

1177623

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Screw, Socket, Countersunk Head (M10 x 1.5 x 70mm)	1	2
16	Spacer (40 x 10.5 x 3mm)	1	2
17	Caster, Front	1	2
23	Locknut (M10 x 1.5mm)	1	2
15	Screw, Socket, Countersunk Head (M10 x 1.5 x 70mm)	1	2
16	Spacer (40 x 10.5 x 3mm)	1	2
17	Caster, Front	1	2
23	Locknut (M10 x 1.5mm)	1	2
13	Screw, Socket, Countersunk Head (M10 x 1.5 x 70mm)	1	2
14	Spacer (40 x 10.5 x 3mm)	1	2
15	Caster, Front	1	2
21	Locknut (M10 x 1.5mm)	1	2

NLA - Kit, Front Caster w /Hardware (Pair)

N/A

Create/add to Wishlist

1177624

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
18	Bushing, Bronze	1	4
19	Bushing, Base and Leg	1	2
20	Screw, Socket Button Head, (M10 x 1.5 x 22mm)	1	2
31	Lock Washer, Split (M10)	1	2
18	Bushing, Bronze	1	4
19	Bushing, Base and Leg	1	2
20	Screw, Socket Button Head, (M10 x 1.5 x 22mm)	1	2
31	Lock Washer, Split (M10)	1	2
16	Bushing, Bronze	1	4
17	Bushing, Base and Leg	1	2
18	Screw, Socket Button Head, (M10 x 1.5 x 22mm)	1	2
31	Lock Washer, Split (M10)	1	2

NLA - Kit, Leg to Crossmember Mounting Hardware (Pair)

N/A

Create/add to Wishlist

1177626

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
21	Washer (10.5 x 20 x 2mm)	1	2
22	Index Plate Assembly	1	1
23	Locknut (M10 x 1.5mm)	1	2
21	Washer (10.5 x 20 x 2mm)	1	2
22	Index Plate Assembly	1	1
23	Locknut (M10 x 1.5mm)	1	2

NLA - Kit, Index Plate w /Hardware

N/A

Create/add to Wishlist

1177627

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
24	Handle, Mount	1	1
25	Spring, Compression (1 x 1-1/16 x 1/8")	1	1
26	Screw, Shoulder Hex Socket Head w/ Patch (1/2" x 1-1/4", 3/8-16)	1	1
24	Handle, Mount	1	1
25	Spring, Compression (1 x 1-1/16 x 1/8")	1	1
26	Screw, Shoulder Hex Socket Head w/ Patch (1/2" x 1-1/4", 3/8-16)	1	1

NLA - Kit, Handle Mount

N/A

Create/add to Wishlist

1177629

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
27	Screw, Socket Button Head w/ Patch (M8 x 1.25 x 25mm)	1	4
28	Tie Rod Assembly	1	2
27	Screw, Socket Button Head w/ Patch (M8 x 1.25 x 25mm)	1	4
28	Tie Rod Assembly	1	2
28	Screw, Socket Button Head w/ Patch (M8 x 1.25 x 25mm)	1	4
29	Tie Rod Assembly	1	2

NLA - Kit, Linkage (Pair)

N/A

Create/add to Wishlist

1177628

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
29	Handle	1	1
30	Grip, Cane	1	1
29	Handle	1	1
30	Grip, Cane	1	1

NLA - Kit, Handle w /Grip

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 12-14 and 23.
B	Includes items 15-17 and 23.
C	Includes items 18-21.
D	Includes items 21-23.
E	Includes items 24-26.
F	Includes items 27-28.
G	Includes items 29-30.

Catalog Literature

Parts Books for Invacare® I-Lift®
