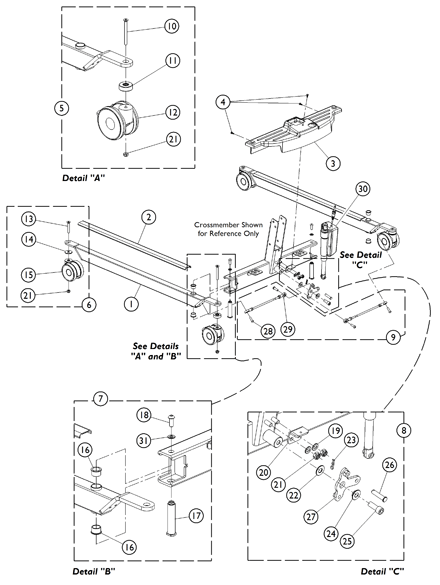

03. ILIFTEE - Electric Lift - Base

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1156139

Leg Assembly

Create/add to Wishlist

1175245

NLA - Cover, Leg Protection

N/A

Create/add to Wishlist

1156232

NLA - Shroud, Electric Base

N/A

Create/add to Wishlist

1023632

Clip, Shroud

$9.00

Create/add to Wishlist

1175313

Actuator

Create/add to Wishlist

1177622

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Screw, Socket, Countersunk Head (M10 x 1.5 x 85mm)	1	2
13	Spacer (41.3 x 10.2 x 15mm)	1	2
14	Caster, Rear Locking	1	2
23	Locknut (M10 x 1.5mm)	1	2
12	Screw, Socket, Countersunk Head (M10 x 1.5 x 85mm)	1	2
13	Spacer (41.3 x 10.2 x 15mm)	1	2
14	Caster, Rear Locking	1	2
23	Locknut (M10 x 1.5mm)	1	2
10	Screw, Socket, Countersunk Head (M10 x 1.5 x 85mm)	1	2
11	Spacer (41.3 x 10.2 x 15mm)	1	2
12	Caster, Rear Locking	1	2
21	Locknut (M10 x 1.5mm)	1	2

NLA - Kit, Rear Caster w/ Hardware, Locking (Pair)

N/A

Create/add to Wishlist

1177623

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Screw, Socket, Countersunk Head (M10 x 1.5 x 70mm)	1	2
16	Spacer (40 x 10.5 x 3mm)	1	2
17	Caster, Front	1	2
23	Locknut (M10 x 1.5mm)	1	2
15	Screw, Socket, Countersunk Head (M10 x 1.5 x 70mm)	1	2
16	Spacer (40 x 10.5 x 3mm)	1	2
17	Caster, Front	1	2
23	Locknut (M10 x 1.5mm)	1	2
13	Screw, Socket, Countersunk Head (M10 x 1.5 x 70mm)	1	2
14	Spacer (40 x 10.5 x 3mm)	1	2
15	Caster, Front	1	2
21	Locknut (M10 x 1.5mm)	1	2

NLA - Kit, Front Caster w /Hardware (Pair)

N/A

Create/add to Wishlist

1177624

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
18	Bushing, Bronze	1	4
19	Bushing, Base and Leg	1	2
20	Screw, Socket Button Head, (M10 x 1.5 x 22mm)	1	2
31	Lock Washer, Split (M10)	1	2
18	Bushing, Bronze	1	4
19	Bushing, Base and Leg	1	2
20	Screw, Socket Button Head, (M10 x 1.5 x 22mm)	1	2
31	Lock Washer, Split (M10)	1	2
16	Bushing, Bronze	1	4
17	Bushing, Base and Leg	1	2
18	Screw, Socket Button Head, (M10 x 1.5 x 22mm)	1	2
31	Lock Washer, Split (M10)	1	2

NLA - Kit, Leg to Crossmember Mounting Hardware (Pair)

N/A

Create/add to Wishlist

1177625

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
19	Washer (10.5 x 20 x 2mm)	1	2
20	Plate, Support, Electric Base	1	1
21	Locknut (M10 x 1.5mm)	1	2
22	Washer (28mm x 12mm x 2mm)	1	1
23	Pin, Hitch (3/8 x 1-3/16")	1	1
24	Bearing, Flange (12mm x 18mm x 7.6mm)	1	1
25	Screw, Socket Head (M12 x 1.75 x 30mm)	1	1
26	Pin, Clevis (10mm x 44mm)	1	1
27	Bracket, Linkage	1	1

NLA - Kit, Actuator Mounting Hardware

N/A

Create/add to Wishlist

1177629

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
27	Screw, Socket Button Head w/ Patch (M8 x 1.25 x 25mm)	1	4
28	Tie Rod Assembly	1	2
27	Screw, Socket Button Head w/ Patch (M8 x 1.25 x 25mm)	1	4
28	Tie Rod Assembly	1	2
28	Screw, Socket Button Head w/ Patch (M8 x 1.25 x 25mm)	1	4
29	Tie Rod Assembly	1	2

NLA - Kit, Linkage (Pair)

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 10-12 and 21.
B	Includes items 13-15 and 21.
C	Includes items 16-19.
D	Includes items 19-27. Item #26 1142010 is now available from The Aftermarket Group (TAG) under part number TAG1142010.
E	Includes items 28-29.

Catalog Literature

Parts Books for Invacare® I-Lift®
