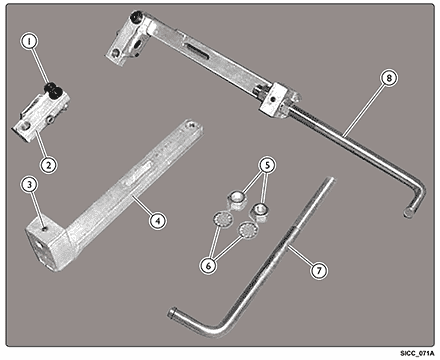

08. Door Probe Locking Assemblies

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

IHPAR9902

Screw, Hex Head (5/16-18 x 2")

Create/add to Wishlist

PAR9919

Washer

Create/add to Wishlist

IHPAR9903

Nut (5/16-18)

Create/add to Wishlist

1145541

Bracket, Probe Swivel

A ,C

Create/add to Wishlist

IHPAR3743

NLA - Bracket, Probe Swivel

N/A

B ,C

Create/add to Wishlist

IHPAR3625

Screw, Set, Hinge Bracket

Create/add to Wishlist

PAR3642

NLA - Bar, Probe Slide

N/A

A ,F

Create/add to Wishlist

IHPAR3742

Bar, Probe Slide

Create/add to Wishlist

1127647

Nut, Hex (1/2-20)

Create/add to Wishlist

IHPAR9852

NLA - Washer, Star Lock

N/A

Create/add to Wishlist

IHPAR3641

NLA - Probe, Door

N/A

Create/add to Wishlist

PAR3640

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Bar, Probe Slide	1	1
3	Probe, Threaded	1	1
4	Slide, Bracket Bar	1	1
5	Screw, Set, Socket Head, Cup Point (5/16-18 x 2)	1	1
6	Screw, Flat, Socket Head (1/4-20 x 1-1/2)	1	1
7	Washer, Flat (5/16 x 3/4 x 3/64)	1	3
8	Washer, Lock, Internal Tooth (1/2)	1	2
9	Nut, Hex (1/4-20)	1	1
10	Nut, Hex (1/2-20)	1	2
11	Nut, Hex (5/16-18)	1	2
	NLA - Bar, Probe Slide	1	1
	Probe, Threaded	1	1
	Slide, Bracket Bar	1	1
	Screw, Set, Socket Head, Cup Point (5/16-18 x 2)	1	1
	Screw, Flat, Socket Head (1/4-20 x 1-1/2)	1	1
	Washer, Flat (5/16 x 3/4 x 3/64)	1	3
	Washer, Lock, Internal Tooth (1/2)	1	2
	Nut, Hex (1/4-20)	1	1
	Nut, Hex (1/2-20)	1	2
	Nut, Hex (5/16-18)	1	2

Mechanism, Complete Probe Locking

A ,E

Create/add to Wishlist

IHPAR3740

NLA - Mechanism, Complete Probe Locking

N/A

B ,E

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	For Models 3600, 3600XL, 3750, and 3800 ONLY.
B	For Models 3700A, 3700B, 3700BMF, 3700D, 3700DMF ONLY.
C	Also includes Item 1 (Screw, Nut, and Washer).
D	Also includes Items 5 (Hex Nut) and Item 6 (Lockwasher)
E	Also includes Items 1 - 7.
F	Part #PAR3642 is no longer available individually. Order item #8 PAR3640 that includes both part numbers PAR3642 and 1145541 together as a replacement.

Catalog Literature

Parts Books for ICC - Tub 3300, 3600, 3600XL, 3700, 3750, 3800, 4300, 5300
