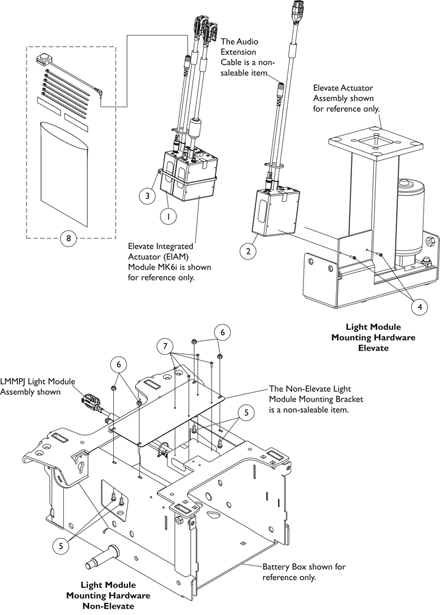

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1174873	NLA - Kit, Light Module Assembly (LMMPJ)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1174874	NLA - Kit, Light Module Assembly (LMSPJ)	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1095502	NLA - Package, Tie Wrap (11-1/2" L)	10	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1156640	NLA - Screw, Phillips Pan Head Tap (4-40 x 3/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1017423	Screw, Slotted Hex Washer Head w/ Patch (#10-32 x 1/2")	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1108194	NLA - Locknut (#10-32)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1052041	Screw, Phillips Pan Head (#4-40 x 3/8")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1174878	NLA - Kit, Single Push Button Switch	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Note Code	Definition
A	Kit includes Light Module, (1) 1" Hook Adhesive Fastener, (10) Tie Wraps, Installation Instructions and Power WheelchaIr Wiring Guide (not shown). The Hook and Loop Adhesive Back Fasteners attached between the two modules are non-saleable items.
B	Kit includes Light Module, (10) Tie Wraps, Installation Instructions and Power WheelchaIr Wiring Guide (not shown).
C	Kit includes the Single Push Button Switch, (6) Tie Wraps, (1) Hook and Loop Adhesive Back Fastener, (1) Poly Bag, Installation Instructions and Power Wheelchair Wiring Guide. (not shown).
