Frames - Seat Mtg. Hdwr. & Interface Mtg. Plates - CGR w/ 3-22NF/GP24 Batteries - TDX SP/SP-GT/SR (After 7/13/11)

Print this page

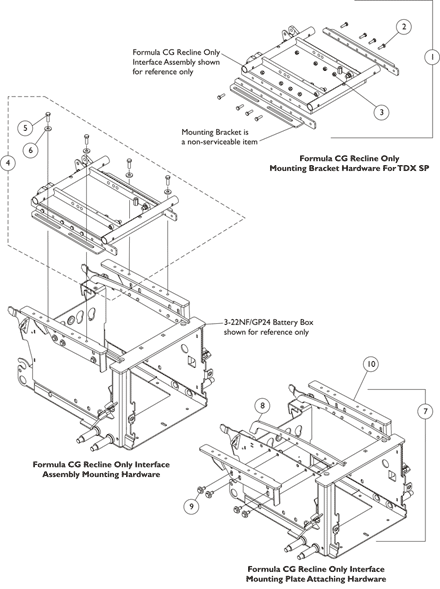

Seat Frame Mounting Hardware & Interface Mtg. Plates

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1143803

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8

NLA - Kit, Seat Mounting Plate Hardware (Recline Only)

N/A

Create/add to Wishlist

1147142

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
6	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
6	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
7	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	4

Kit, Formula CGT/CGR/CGTR Interface Asbly. Mtg. Hdwr. (For TDX SP w/ GP 24 Batteries Less Vent Option)

Create/add to Wishlist

1147146

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	4
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
5	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	4
6	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
5	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	4
6	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
7	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	4
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	4

NLA - Kit, Formula CG Tilt, Recline & Tilt/Recline Interface Asbly. Mtg. Hdwr. (For TDX SP w/ GP 24 Batteries and Vent Option)

N/A

Create/add to Wishlist

1147130

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
	Plate, Nut	1	2
	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
11	Plate, Nut	1	2
12	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
6	Plate, Nut	1	2
7	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
8	Plate, Nut	1	2
9	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
8	Plate, Nut	1	2
9	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
5	Plate, Nut	1	2
6	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8

Kit, Interface Mounting Plate Hardware

$110.00

Create/add to Wishlist

1173239

Plate, Low Interface Mountng, Black - Right

Create/add to Wishlist

1173240

Plate, Low Interface Mountng, Black - Left

Create/add to Wishlist

1173241

Plate, Medium Interface Mountng, Black - Right

Create/add to Wishlist

1173242

Plate, Medium Interface Mountng, Black - Left

Create/add to Wishlist

1173243

Plate, High Interface Mountng, Black - Right

Create/add to Wishlist

1173244

Plate, High Interface Mountng, Black - Left

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 and 3
B	Includes items 5 and 6
C	Includes items 8 and 9
D	Low Seat-To-Floor = 17.25-18.25" adjustment range.
E	Medium Seat-To-Floor = 18-19" adjustment range.
F	High Seat-To-Floor = 19-20" adjustment range.

Catalog Literature

Parts Books for Formula™CG Powered Seating CGE/CGT/CGTE/CGR/CGTR/CGTRE
