Frames - Seat Mtg. Hdwr. & Interface Mtg. Plates - CGR w/ 22NF Batteries - TDX SP/SP-GT (After 7/13/11)

Print this page

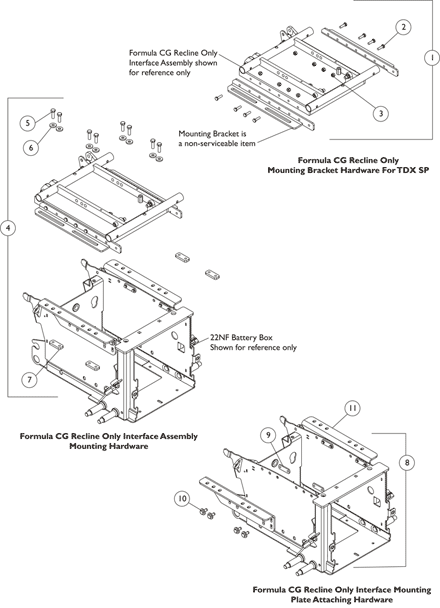

Seat Frame Mounting Hardware & Interface Mtg. Plates

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1143803

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8

NLA - Kit, Seat Mounting Plate Hardware (Recline Only)

N/A

Create/add to Wishlist

1173256

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Screw, Hex Head (5/16-18 x 1")	1	8
6	Washer, Flat (21/64 x 53/64 x 7/64")	1	8
7	Plate, Nut (5/16-18)	1	4
7	Screw, Hex Head (5/16-18 x 1")	1	8
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	8
9	Plate, Nut (5/16-18)	1	4

Kit, Formula CGT/CGR/CGTR Interface Asbly. Mtg. Hdwr. (For TDX SP w/ 22NF Batteries)

Create/add to Wishlist

1121700

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Nut, Weld (5/16-18 x 1-3/8" Spacing)	1	4
10	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
9	Nut, Weld (5/16-18 x 1-3/8" Spacing)	1	4
10	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
11	Nut, Weld (5/16-18 x 1-3/8" Spacing)	1	4
12	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
11	Nut, Weld (5/16-18 x 1-3/8" Spacing)	1	4
12	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8

Kit, Interface Mounting Plate Attaching Hardware

Create/add to Wishlist

1173230

Plate, Low Interface Mounting, Black - Right

$43.00

Create/add to Wishlist

1173231

Plate, Low Interface Mounting, Black - Left

$43.00

Create/add to Wishlist

1173226

Plate, Medium Interface Mounting, Black - Right

Create/add to Wishlist

1173227

Plate, Medium Interface Mounting, Black - Left

Create/add to Wishlist

1173228

Plate, High Interface Mounting, Black - Right

Create/add to Wishlist

1173229

Plate, High Interface Mounting, Black - Left

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 and 3
B	Includes items 5-7
C	Includes items 9 and 10
D	Low Seat-To-Floor = 17.25-18.25" adjustment range.
E	Medium Seat-To-Floor = 18-19" adjustment range.
F	High Seat-To-Floor = 19-20" adjustment range.

Catalog Literature

Parts Books for Formula™CG Powered Seating CGE/CGT/CGTE/CGR/CGTR/CGTRE
