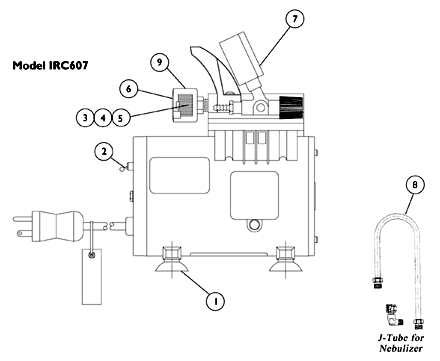

12. Compressor - 50PSI (IRC607)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 624496 | Foot, Suction Cup | 1 | 4 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | 602136 | NLA - Switch, On/Off | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 641034 | NLA - Filter, Foam, Grey | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 641042 | NLA - Filter, Felt | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 660710 | NLA - Filter Body | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 660767 | NLA - Cap, Filter Body | 9 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 638122 | Gauge, Pressure | 1 | 1 |
$61.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | IRC5070 | J-Tube with DISS* Connector Assembly, Nebulizer | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 9 | 661575 | Inlet Filter Assembly | 1 | 1 |
$17.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 636960 | NLA - Instruction Sheet, 50 PSI Compressor | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
|
| 653016 | Carton, 50PSI Compressor | 1 | 1 | B |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes Items 3-6 |
| B | Not Shown |
| C | Part is no longer serviceable in the field as of 06/30/11. Use 624496 as its replacement. |
