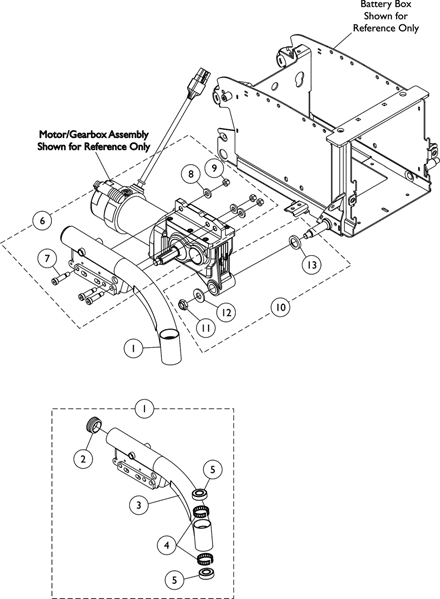

Walking Beams & Mounting Hardware - (TDX SI & TDX SI-2 Before 9/15/11) & TDX SI-HD

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

8881147996

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Plug Button, Round, Black (1-1/2")	1	1
4	Ring, Tolerance	1	2
5	Bearing (5/8")	1	2

Kit, Walking Beam Assembly, Color - Right

A ,C ,F

Create/add to Wishlist

8881147997

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Plug Button, Round, Black (1-1/2")	1	1
4	Ring, Tolerance	1	2
5	Bearing (5/8")	1	2

Kit, Walking Beam Assembly, Color - Left

A ,C ,F

Create/add to Wishlist

8881160521

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Plug Button, Round, Black (1-1/2")	1	1
3	Decal, TDX SI, Black	1	1
4	Ring, Tolerance	1	2
5	Bearing (5/8")	1	2

NLA - Kit, Walking Beam Assembly w/ TDX SI Black Decal, Color - Right

N/A

B ,C ,G

Create/add to Wishlist

8881160522

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Plug Button, Round, Black (1-1/2")	1	1
3	Decal, TDX SI, Black	1	1
4	Ring, Tolerance	1	2
5	Bearing (5/8")	1	2

NLA - Kit, Walking Beam Assembly w/ TDX SI Black Decal, Color - Left

N/A

B ,C ,G

Create/add to Wishlist

1146345

NLA - Plug Button, Round, Black (1-1/2")

Create/add to Wishlist

1148036

Decal, TDX SI, Yellow/Silver

Create/add to Wishlist

1157930

Decal, TDX SI, Black

Create/add to Wishlist

1146461

NLA - Decal, TDX SI Heavy Duty, Yellow/Silver

N/A

Create/add to Wishlist

1164950

Decal, TDX SI-2, Yellow/Silver

Create/add to Wishlist

1110717

Ring, Tolerance

$9.00

Create/add to Wishlist

40117X006

Bearing (5/8")

$16.00

Create/add to Wishlist

1145068

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	NLA - Screw, Shoulder Hex Socket Head (3/8 x 1", 5/16-18)	1	3
9	NLA - Washer, Steel (7/16 x 13/16 x 1/8")	1	3
10	Locknut (5/16-18)	1	3
8	NLA - Screw, Shoulder Hex Socket Head (3/8 x 1", 5/16-18)	1	3
9	NLA - Washer, Steel (7/16 x 13/16 x 1/8")	1	3
10	Locknut (5/16-18)	1	3
7	NLA - Screw, Shoulder Hex Socket Head (3/8 x 1", 5/16-18)	1	3
8	NLA - Washer, Steel (7/16 x 13/16 x 1/8")	1	3
9	Locknut (5/16-18)	1	3

Kit, Walking Beam Mounting Hardware

Create/add to Wishlist

1160523

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Locknut (1/2-20)	1	1
12	Washer (1/2")	1	1
13	Spacer, Coved (3/4 x 1-1/8 x 1-1/32")	1	1
6	Spacer, Coved (3/4 x 1-1/8 x 1-1/32")	1	1
7	Washer (1/2")	1	1
8	Locknut (1/2-20)	1	1
10	Locknut (1/2-20)	1	1
11	Washer (1/2")	1	1
12	Spacer, Coved (3/4 x 1-1/8 x 1-1/32")	1	1

Kit, 2-Pole and 4-Pole Motor Mounting Hardware

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Used for all frame colors except 30P Sunny Yellow, 60P Silver Metallic and 71P Silver Vein.
B	Used for 30P Sunny Yellow, 60P Silver Metallic and 71P Silver Vein frame colors only.
C	Specify frame color when ordering.
D	Includes items 7-9.
E	Includes items 11-13.
F	Includes the Walking Beam, items 2, 4 and 5. Item #3 Yellow/Silver Decals are not included with this Walking Beam Assembly.
G	Includes the Walking Beam and items 2-5.
H	Used for 61P Electric Red and 62P Electric Blue frame colors only.

Catalog Literature

Parts Books for TDX® SI, TDX® SI-2 TDX® SI-HD
