Front Riggings - Footrest Supports - Hemi - PHW93

Print this page

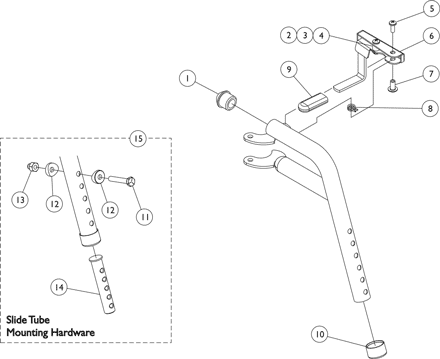

PHW93 (Hemi) Footrest Supports

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1020719	Anti-Rattle, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1025716	Screw, Phillips Pan Head (#10-32 x 11/16")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	47565X057	Bushing (7/32 x 3/8 x 11/32")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025735	Locknut (#10-32)	1	1	$2.60		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1026114	Screw, Phillips Pan Head (#10-32 x 1/2")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1114749	NLA - Handle, Release, Black - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1114750	NLA - Handle, Release, Black - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028846	NLA - Rivnut (#10-32)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1028707	Spring, Release - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1028708	Spring, Release - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1006490	Tip, Plastic, Black	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	15680X012	Collar, Anti-Rattle (7/8")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1070759	Screw, Hex Head (1/4-20 x 1-1/2")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1044214	Nut, Hex with Nylon Cap (1/4-20)	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1020534	Insert, Threaded	1	1	$11.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1074143	Kit, Slide Tube Mounting Hardware	1	1	$20.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	8881126089	Footrest Support Assembly, Hemi, Color - Right	1	1	$116.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	8881126090	Footrest Support Assembly, Hemi, Color - Left	1	1	$116.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-4.
B	Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints."
C	Includes items 11-14.
D	As of 8/15/03, the Threaded Insert was revised from 3 to 5 Holes. Threaded Insert is Backward Compatible and does not require ordering in Pairs.

Catalog Literature

Parts Books for TDX® SI, TDX® SI-2 TDX® SI-HD
