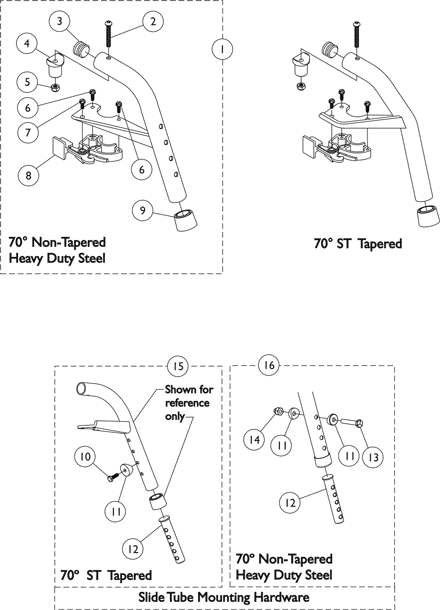

Front Riggings - Footrest Supports - Sector Style
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Specify frame color when ordering. See page titled "Frame Finishes and Touch-Up Paints." |
| B | Item 16 takes 2. |
| C | Uses Item Number 3, Plug Button 1029501 |
| D | Uses Item Number 3, Plug Button 1056328 |
| E | Not Shown. For 70 deg. Tapered Footrest. |
| F | Includes items 2-9. |
| G | Includes items 10-12. |
| H | Includes items 11-14. |
| I | As of 8/15/03, the Threaded Insert was revised from 3 to 5 Holes. Threaded Insert is Backward Compatible and does not require ordering in Pairs. |
| J | See item #1 footnote C or D for Front Rigging Plug Button usage. |
