Front Riggings - Center Mount Rigging (CTMT-F w/ CTMTFB One PC Flip-Up Footboard) After 12/30/09

Print this page

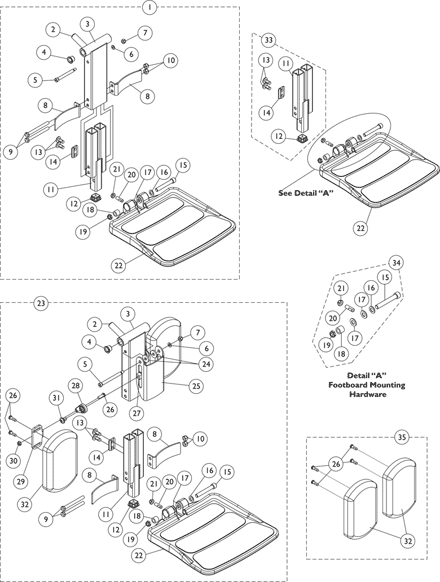

Front Rigging - Center Mount Rigging (CTMT-F w/ CTMTFB One PC Flip-Up Footboard)

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1165388

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
7	Locknut (1/4-20)	1	1
10	Locknut (5/16-18)	1	2
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
3	Support, Footrest, Center Mount, Black - Regular	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
12	Plug Button, Black (1" Square)	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
19	Locknut, Low Profile (3/8-16)	1	1
7	Locknut (1/4-20)	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
8	Bracket, Heel Stop, Black	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
21	Locknut (5/16-18)	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
18	Bushing (3/8 x 5/8 x 1/2")	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
7	Locknut (1/4-20)	1	1
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
14	Cleat, Button Head	1	2
12	Plug Button, Black (1" Square)	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
8	Bracket, Heel Stop, Black	1	2
12	Plug Button, Black (1" Square)	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
19	Locknut, Low Profile (3/8-16)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
10	Locknut (5/16-18)	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
21	Locknut (5/16-18)	1	1
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1

Center Mount Front Rigging w/ One PC Footboard (11" - 15" Range)

$447.00

Create/add to Wishlist

1165389

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Locknut (1/4-20)	1	1
19	Locknut, Low Profile (3/8-16)	1	1
30	Locknut (1/4-20)	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
27	Nut, T (5/16-18)	1	2
3	Support, Footrest, Center Mount, Black - Regular	1	1
10	Locknut (5/16-18)	1	2
30	Locknut (1/4-20)	1	2
12	Plug Button, Black (1" Square)	1	1
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
14	Cleat, Button Head	1	2
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
28	Adjuster, Calf Pad	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
18	Bushing (3/8 x 5/8 x 1/2")	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
19	Locknut, Low Profile (3/8-16)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
27	Nut, T (5/16-18)	1	2
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
8	Bracket, Heel Stop, Black	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
25	Bracket, Calf Pad, Black	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
21	Locknut (5/16-18)	1	1
29	Bracket, Mounting, Calf Pad	1	2
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
18	Bushing (3/8 x 5/8 x 1/2")	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
7	Locknut (1/4-20)	1	1
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
19	Locknut, Low Profile (3/8-16)	1	1
21	Locknut (5/16-18)	1	1
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
10	Locknut (5/16-18)	1	2
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (5/16-18)	1	2
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
14	Cleat, Button Head	1	2
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
25	Bracket, Calf Pad, Black	1	1
27	Nut, T (5/16-18)	1	2
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
25	Bracket, Calf Pad, Black	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
10	Locknut (5/16-18)	1	2
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
3	Support, Footrest, Center Mount, Black - Regular	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
21	Locknut (5/16-18)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
32	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	6
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1

Center Mount Front Rigging w/ One PC Footboard & Calf Pads (11" - 15" Range)

$764.00

Create/add to Wishlist

1166067

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
14	Cleat, Button Head	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
14	Cleat, Button Head	1	2
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
12	Plug Button, Black (1" Square)	1	1
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
12	Plug Button, Black (1" Square)	1	1
14	Cleat, Button Head	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
14	Cleat, Button Head	1	2
11	Footboard Extension Assembly, Black (11" - 15" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4

Kit, Footboard Extension Assembly (11" - 15" Range)

$87.00

Create/add to Wishlist

1147134

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Locknut, Low Profile (3/8-16)	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
21	Bushing (3/8 x 5/8 x 1/2")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
19	Locknut, Low Profile (3/8-16)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
21	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
22	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
21	Locknut (5/16-18)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
21	Locknut (5/16-18)	1	1
3	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
4	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
5	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
6	Bushing (3/8 x 5/8 x 1/2")	1	1
7	Locknut, Low Profile (3/8-16)	1	1
8	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
9	Locknut (5/16-18)	1	1
20	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
26	Locknut (5/16-18)	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
24	Locknut (5/16-18)	1	1
21	Bushing (3/8 x 5/8 x 1/2")	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
23	Bushing (3/8 x 5/8 x 1/2")	1	1
24	Locknut, Low Profile (3/8-16)	1	1
25	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
3	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
4	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
5	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
6	Bushing (3/8 x 5/8 x 1/2")	1	1
7	Locknut, Low Profile (3/8-16)	1	1
8	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
9	Locknut (5/16-18)	1	1
3	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
4	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
5	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
6	Bushing (3/8 x 5/8 x 1/2")	1	1
7	Locknut, Low Profile (3/8-16)	1	1
8	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
9	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Locknut, Low Profile (3/8-16)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
24	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
2	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
3	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
4	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
5	Bushing (3/8 x 5/8 x 1/2")	1	1
6	Locknut, Low Profile (3/8-16)	1	1
7	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
8	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1

Kit, Footboard Mounting Hardware

$38.00

Create/add to Wishlist

1114311

Footboard w/ Cover (11-1/4" W x 11-1/2" L)

$374.00

Create/add to Wishlist

1163373

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2

Kit, Calf Pad (Pair)

$179.00

Create/add to Wishlist

1165506

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
19	Bracket, Calf Pad, Black	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
7	Locknut (1/4-20)	1	1
25	Bracket, Calf Pad, Black	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
25	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
25	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
25	Bracket, Calf Pad, Black	1	1
10	Locknut (1/4-20)	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
9	Washer (1/4 x 1/2 x 1/16")	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
7	Locknut (1/4-20)	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
19	Bracket, Calf Pad, Black	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Bracket, Calf Pad, Black	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
18	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
19	Bracket, Calf Pad, Black	1	1

Kit, Bracket, Calf Pad Mounting w/ Hardware

$31.00

Create/add to Wishlist

1165505

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
20	Nut, T (5/16-18)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
21	Adjuster, Calf Pad	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
22	Bracket, Mounting, Calf Pad	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
23	Locknut (1/4-20)	1	2
30	Locknut (1/4-20)	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
22	Bracket, Mounting, Calf Pad	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
27	Nut, T (5/16-18)	1	2
20	Nut, T (5/16-18)	1	2
23	Locknut (1/4-20)	1	2
20	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
21	Adjuster, Calf Pad	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
22	Bracket, Mounting, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
21	Adjuster, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
26	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
27	Nut, T (5/16-18)	1	2
28	Adjuster, Calf Pad	1	2
29	Bracket, Mounting, Calf Pad	1	2
30	Locknut (1/4-20)	1	2
31	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	2
20	Nut, T (5/16-18)	1	2
21	Adjuster, Calf Pad	1	2
22	Bracket, Mounting, Calf Pad	1	2
23	Locknut (1/4-20)	1	2
24	Screw, Socket, Button Head w/ Patch (5/16-18 x 1/2")	1	2

Kit, Hardware, Calf Pad Adjustment

$140.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-22
B	Includes items 2-22 and 24-32
C	Includes items 11-14
D	Includes items 15-21
E	Includes items 26 and 32
F	Not shown. Includes items 5-7, 24 and 25
G	Not shown. Includes items 26-31

Catalog Literature

Parts Books for Formula™CG Tilt (CGT) Powered Seating

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Front Riggings - Center Mount Rigging (CTMT-F w/ CTMTFB One PC Flip-Up Footboard) After 12/30/09

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
