Frames - Captain Seat & Actuator Hardware (Before 11/01/01)

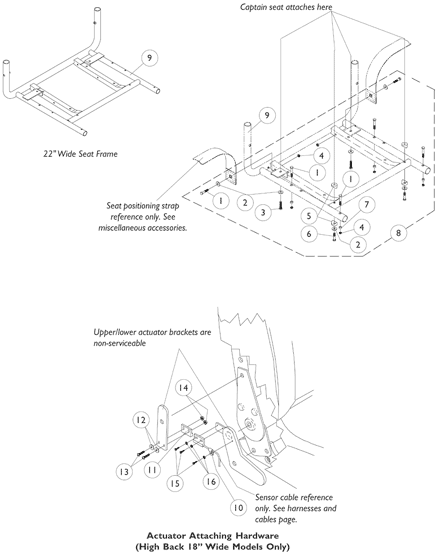

Captain Seat Frame and Actuator Hardware - Before 11/01/01

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1030949	Screw, Hex Head (1/4-20 x 1-1/2")	1	6			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1026900	Washer (1/4 x 23/32 x 1/16")	1	6	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1071603	NLA - Screw, Hex Head w/ Patch (M6 x 1 x 20mm)	1	4	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1045267	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	4	$9.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930333	Locknut (1/4-20)	25	6	$62.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1070434	nla - Screw, Hex Head w/ Patch (M6 x 1 x 50mm)	1	2	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1088898	NLA - Screw, Hex Head w/ Patch (1/4-20 x 1-3/4")	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1047449	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1070450	NLA - Hardware, Seat Attaching	1	1	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1079208	NLA - Hardware, Captain Seat Mounting	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1070455	NLA - Frame, Seat, Black (18" W)	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1101913	NLA - Frame, Seat, Black (22" W)	1	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1098624	NLA - Clamp, Cable	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1024001	Sensor, Actuator Switch	1	1	$29.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	16348X007	Rivet Washer (1/8 x 3/8 x 1/16")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1074128	Screw, Phillips Pan Head (#4-40 x 7/16")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	P0870X000	Nut, Hex Keps (#4-40)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1025116	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1008525	NLA - Washer, Internal Tooth Lock (#4-40)	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Extended back, forward folding 18" Wide and High Backs 22" Wide
B	Consists of items 1-7
C	All high backs 18" wide
D	Extended Back, Forward Folding and High Backs 18" Wide
E	High Back 22" Wide

Catalog Literature

Parts Books for Pronto® R2™, Ranger II™ MWD for WSBT (After 2/29/2000)
