1 |
See Chart
|
Overall Back Height |
|
Material Back Height |
|
16" Wide |
|
18" Wide |
|
20" Wide |
|
|
22" High |
|
17" High |
|
Note-A
1165837
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Screw, Socket, Button (1/4-20 x 3/8") |
1 |
4 |
|
Instruction Sheet, Contoura Back |
1 |
1 |
|
Upholstery, Back, Contoura, Mesh, Black (16" W x 22" H) |
1 |
1 |
|
Foam, Back, Contoura (16" W x 22" H) |
1 |
1 |
|
Back, Curved Contoura, Black (16" W x 22" H) |
1 |
1 |
|
Support, Lateral (22" H) |
1 |
2 |
|
NLA - Support, Lumbar - Large |
1 |
1 |
|
|
Note-A
1165842
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Screw, Socket, Button (1/4-20 x 3/8") |
1 |
4 |
|
Instruction Sheet, Contoura Back |
1 |
1 |
|
Upholstery, Back, Contoura, Mesh, Black (18" W x 22" H) |
1 |
1 |
|
Foam, Back, Contoura (18" W x 22" H) |
1 |
1 |
|
Back, Curved Contoura, Black (18" W x 22" H) |
1 |
1 |
|
Support, Lateral (22" H) |
1 |
2 |
|
NLA - Support, Lumbar - Large |
1 |
1 |
|
|
Note-A
1165843
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Screw, Socket, Button (1/4-20 x 3/8") |
1 |
4 |
|
Instruction Sheet, Contoura Back |
1 |
1 |
|
Back, Curved Contoura, Black (20" W x 22" H) |
1 |
1 |
|
Foam, Back, Contoura (20" W x 22" H) |
1 |
1 |
|
Upholstery, Back, Contoura, Mesh, Black (20" W x 22" H) |
1 |
1 |
|
Support, Lateral (22" H) |
1 |
2 |
|
NLA - Support, Lumbar - Large |
1 |
1 |
|
|
|
25" High |
|
20" High |
|
Note-A
1164235
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Screw, Socket, Button (1/4-20 x 3/8") |
1 |
4 |
|
Support, Lateral (25" H) |
1 |
2 |
|
Instruction Sheet, Contoura Back |
1 |
1 |
|
Back, Curved Contoura, Black (16" W x 25" H) |
1 |
1 |
|
Uphostery, Back, Contoura, Mesh, Black (16" W x 25" H) |
1 |
1 |
|
Foam, Back, Contoura (16" W x 25" H) |
1 |
1 |
|
NLA - Support, Lumbar - Large |
1 |
1 |
|
|
Note-A
1164237
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Screw, Socket, Button (1/4-20 x 3/8") |
1 |
4 |
|
Support, Lateral (25" H) |
1 |
2 |
|
Instruction Sheet, Contoura Back |
1 |
1 |
|
Back, Curved Contoura, Black (18" W x 25" H) |
1 |
1 |
|
Upholstery, Back, Contoura, Mesh, Black (18" W x 25" H) |
1 |
1 |
|
Foam, Back, Contoura (18" W x 25" H) |
1 |
1 |
|
NLA - Support, Lumbar - Large |
1 |
1 |
|
|
Note-A
1164239
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Screw, Socket, Button (1/4-20 x 3/8") |
1 |
4 |
|
Support, Lateral (25" H) |
1 |
2 |
|
Instruction Sheet, Contoura Back |
1 |
1 |
|
Back, Curved Contoura, Black (20" W x 25" H) |
1 |
1 |
|
Upholstery, Back, Contoura, Mesh, Black (20" W x 25" H) |
1 |
1 |
|
Foam, Back, Contoura (20" W x 25" H) |
1 |
1 |
|
NLA - Support, Lumbar - Large |
1 |
1 |
|
|
|
28" High |
|
23" High |
|
Note-A
1164236
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Screw, Socket, Button (1/4-20 x 3/8") |
1 |
4 |
|
Instruction Sheet, Contoura Back |
1 |
1 |
|
Back, Curved Contoura, Black (16" W x 28" H) |
1 |
1 |
|
Upholstery, Back, Contoura, Mesh, Black (16" W x 28" H) |
1 |
1 |
|
Support, Lateral (28" H) |
1 |
2 |
|
Foam, Back, Contoura (16" W x 28" H) |
1 |
1 |
|
NLA - Support, Lumbar - Large |
1 |
1 |
|
|
Note-A
1164238
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Screw, Socket, Button (1/4-20 x 3/8") |
1 |
4 |
|
Instruction Sheet, Contoura Back |
1 |
1 |
|
Back, Curved Contoura, Black (18" W x 28" H) |
1 |
1 |
|
Uphostery, Back, Contoura, Mesh, Black (18" W x 28" H) |
1 |
1 |
|
Support, Lateral (28" H) |
1 |
2 |
|
Foam, Back, Contoura (18" W x 28" H) |
1 |
1 |
|
NLA - Support, Lumbar - Large |
1 |
1 |
|
|
Note-A
1164240
| Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
Screw, Socket, Button (1/4-20 x 3/8") |
1 |
4 |
|
Instruction Sheet, Contoura Back |
1 |
1 |
|
Back, Curved Contoura, Black (20" W x 28" H) |
1 |
1 |
|
Upholstery, Back, Contoura, Mesh, Black (20" W x 28" H) |
1 |
1 |
|
Support, Lateral (28" H) |
1 |
2 |
|
Foam, Back, Contoura (20" W x 28" H) |
1 |
1 |
|
NLA - Support, Lumbar - Large |
1 |
1 |
|
|
See chart-note
| Chart Code |
Definition |
|
A |
Includes items 2-9 |
|

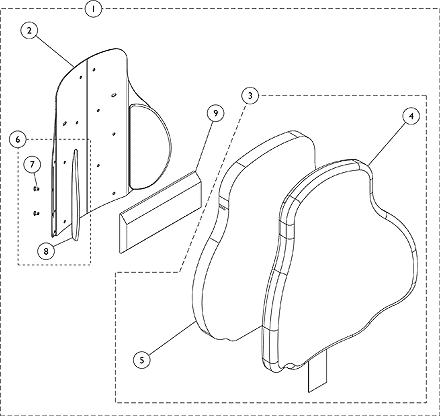

#1 Mesh Curved Contoura Back Kit (CTBMSH) |
N/A |
N/A |
N/A |
A |
|
