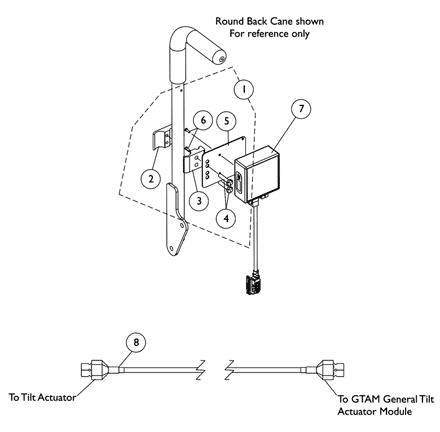

General Tilt Actuator Module (GTAM) - TDX SP w/ 4-Pole Motors & Formula (CGT/CGTE)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1142226

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	NLA - Half Clamp, Threaded Holes	1	1
16	Half Clamp, Non-Threaded Holes	1	1
17	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
18	Plate, Mounting	1	1
19	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5
15	NLA - Half Clamp, Threaded Holes	1	1
16	Half Clamp, Non-Threaded Holes	1	1
17	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
18	Plate, Mounting	1	1
19	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5
10	NLA - Half Clamp, Threaded Holes	1	1
11	Half Clamp, Non-Threaded Holes	1	1
12	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
13	Plate, Mounting	1	1
14	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5
20	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
21	Plate, Mounting	1	1
22	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5
9	NLA - Half Clamp, Threaded Holes	1	1
10	Half Clamp, Non-Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
12	Plate, Mounting	1	1
13	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Plate, Mounting	1	1
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Plate, Mounting	1	1
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Plate, Mounting	1	1
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5
25	NLA - Half Clamp, Threaded Holes	1	1
26	Half Clamp, Non-Threaded Holes	1	1
27	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
28	Plate, Mounting	1	1
29	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5
9	NLA - Half Clamp, Threaded Holes	1	1
10	Half Clamp, Non-Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
12	Plate, Mounting	1	1
13	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5
18	NLA - Half Clamp, Threaded Holes	1	1
19	Half Clamp, Non-Threaded Holes	1	1
25	NLA - Half Clamp, Threaded Holes	1	1
26	Half Clamp, Non-Threaded Holes	1	1
27	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
28	Plate, Mounting	1	1
29	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
	Tie Wrap (5-5/8" L)	1	5

Kit, SNP/DI, 4WSB, S4WSB, GTAM, AUX12M6, AUX34M6, R/L Module Mounting Hardware For Round Back Canes

$59.00

Create/add to Wishlist

1140037

Module, General Tilt Actuator (GTAM) - MK6i (54" L)

$751.00

Create/add to Wishlist

1101400

Harness, ELRPW Power Legrest - Right

$71.00

Create/add to Wishlist

1095503

NLA - Package, Tie Wrap (5-5/8" L)

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-6 and (Cable Ties not shown).
B	The General Tilt Actuator Module (GTAM) is used with a TDX SP w/ 4-Pole Motors and Formula (CGT/CGTE) System with a Conventional Tilt Actuator Motor. Item #8 ELRPW Power Legrest Harness - Right is used to connect the GTAM to the Tilt Actuator Motor
C	Not Shown
