Actuator Motor - Recline & Mounting Hardware - Conventional & Smart Actuator Motors

Print this page

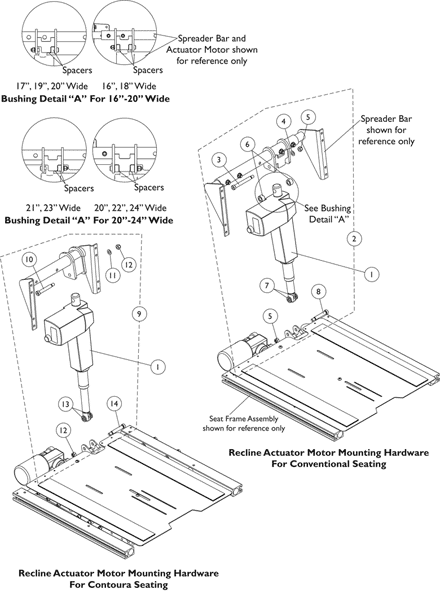

Recline Actuator Motor and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1145486

Motor, CG Recline Actuator (Conventional)

$363.00

Create/add to Wishlist

1151769

Motor, CG Recline Actuator (Smart)

$402.00

Create/add to Wishlist

1144592

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	NLA - Screw, Shoulder Hex Socket Head (3/8 x 2-3/4", 5/16-18)	1	1
4	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
5	Locknut (5/16-18)	1	2
6	Spacer (3/8 x 1 x 1/2")	1	2
7	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	2
8	Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)	1	1
3	NLA - Screw, Shoulder Hex Socket Head (3/8 x 2-3/4", 5/16-18)	1	1
4	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
5	Locknut (5/16-18)	1	2
6	Spacer (3/8 x 1 x 1/2")	1	2
7	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	2
8	Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)	1	1

Kit, Recline Actuator Motor Mounting Hardware Conventional CG

Create/add to Wishlist

1144593

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Screw, Shoulder Hex Socket (3/8 x 2", 5/16-18)	1	1
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
12	Locknut (5/16-18)	1	2
13	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	2
14	Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)	1	1
10	Screw, Shoulder Hex Socket (3/8 x 2", 5/16-18)	1	1
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
12	Locknut (5/16-18)	1	2
13	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	2
14	Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)	1	1

Kit, Recline Actuator Motor Mounting Hardware Contoura/Curve Contoura CG

Create/add to Wishlist

1126173

Harness, Elevate Actuator Extension

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-8
B	Includes items 10-14
C	Recline Actuator Motor Cable length was shortened 10/15/10. Extension Cable part #1126173 is required for wheelchairs manufactured before 5/10/10 for TDX SP w/ CGR Recline Only w/o MPCTMT/MPCTMT-L or 3GTQ-CG/3GTQ3-CG w/ CGR Recline Only and 4-Pole Motors
D	Not Shown

Catalog Literature

Parts Books for Formula™CG Powered Seating CGE/CGT/CGTE/CGR/CGTR/CGTRE
