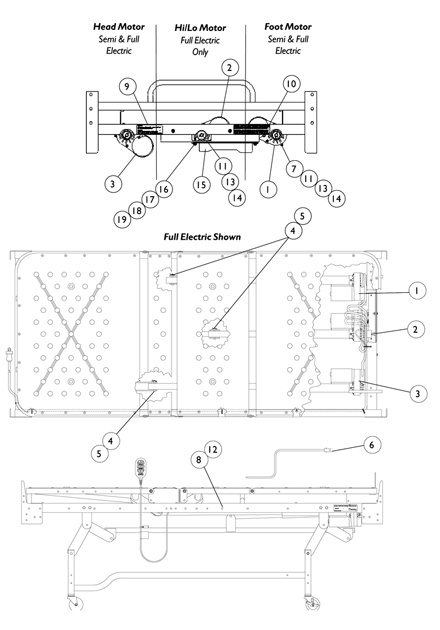

Motors & Components

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	026754	NLA - Motor, Foot, Dark Brown - IH720/SC900	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1133053	NLA - Motor, Foot, White	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	026755	NLA - Motor, Hi/Lo	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	027038	NLA - Motor, Hi/Lo - IH720	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	027019	NLA - Motor, Hi/Lo, Dark Brown - SC900	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	026756	NLA - Motor, Head, Dark Brown - IH720/SC900	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1133055	NLA - Motor, Head, White	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	005952	Pin, Clevis (5/16 x 2-1/8")	1	3			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	51000M743	Pin, Hitch (3/8 x 1-3/16")	1	3	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	5880M004	Crank, Emergency, Dark Brown	1	2	$23.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1133062	Crank, Emergency	1	2		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	001741	Screw, Hex Head (5/16-18 x 3/4")	1	6			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	000438	Tie Wrap (15-1/2" L)	1	8			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	034058	Decal, Warning	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	031763	Label, Caution	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	001008	Washer, Split Lock (5/16")	1	6			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	026874	Cord, Power	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	001405	Bushing, Flanged, Nylon	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	001443	Bushing, Shoulder - Pivot	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	026757	NLA - Junction Box w/ Bracket Assembly (Dark Brown)	1	1	N/A	A ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1133058	NLA - Junction Box with Bracket Assembly, Taupe	1	1	N/A	A ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1102550	NLA - Junction Box	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	026727	Bracket, Mounting, Brown	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	027014	NLA - Bracket, Mounting, Dark Brown	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1133059	NLA - Bracket, Mounting, Taupe	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	54000M515	Screw, Slotted Hex Head Tap (1/4-20 x 3/4")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	54000M516	NLA - Spacer, Round (1/4 x 1/2 x 1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	020342	Kit, Hardware	1	1		B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes: Items 16-19.
B	Not Shown.
C	Includes: Items 7, 11, & 13-14.
D	These items are painted. Please make sure you select the correct color option.

Catalog Literature

Parts Books for ICC - Bed IH720 and SC900 LTC
