EQUIPMENT CA Site

1

1093071

Clamp, Fixed Height Joystick Tube

1

$149.00

A

Create/add to Wishlist

2

1093069

Kit, 1/2" Offset Joystick Tube with Hardware

1

$88.00

A ,B

Create/add to Wishlist

3

1027095

Plug Button, Black (7/8")

1

$10.00

Create/add to Wishlist

4

1095502

NLA - Package, Tie Wrap (11-1/2" L)

10

1

N/A

Create/add to Wishlist

5

1025714

Screw, Phillips Pan Head (#10-32 x 1-1/8")

1

2

$9.00

Create/add to Wishlist

6

1093063

Spacer, Joystick Tube, Black

1

Create/add to Wishlist

2

1161733

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Plug Button, Black (7/8")	1	1
4	Tie Wrap (11-1/2" L)	1	2
5	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
5	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
6	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
9	Plug Button, Black (7/8")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
19	Plug Button, Black (7/8")	1	1
20	Tube, Joystick Offset (2")	1	1
21	Tie Wrap (11-1/2" L)	1	2
22	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
22	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
23	Spacer, Joystick Tube, Black	1	1
9	Plug Button, Black (7/8")	1	1
	Tube, Joystick Offset (2")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
9	Plug Button, Black (7/8")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
10	Plug Button, Black (7/8")	1	1
11	Tube, Joystick Offset (2")	1	1
12	Tie Wrap (11-1/2" L)	1	2
13	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
13	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
14	Spacer, Joystick Tube, Black	1	1
8	Plug Button, Black (7/8")	1	1
9	Tie Wrap (11-1/2" L)	1	2
10	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
11	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
9	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
10	Spacer, Joystick Tube, Black	1	1
8	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
9	Spacer, Joystick Tube, Black	1	1
9	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
6	Tube, Joystick Offset (2")	1	1
8	Tie Wrap (11-1/2" L)	1	2
5	Plug Button, Black (7/8")	1	1
7	Tie Wrap (11-1/2" L)	1	2
6	Plug Button, Black (7/8")	1	1
8	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
7	Tube, Joystick Offset (2")	1	1
11	Plug Button, Black (7/8")	1	1
12	Tie Wrap (11-1/2" L)	1	2
13	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
13	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
14	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1

Kit, 2" Offset Joystick Tube w/ Hardware

1

C

Create/add to Wishlist

7

1139422

Clamp, Height Adjustable Joystick Tube (ARM250)

1

$113.00

A

Create/add to Wishlist

8

1140094

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Plug Button, Black (7/8")	1	1
9	Clamp, Joystick	1	1
10	Pin, Threaded (3/8" x 3/4")	1	1
11	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
12	Washer (1/4 x 1/2 x 1/16")	1	1
13	Spacer, Joystick Tube, Black	1	1
14	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
15	Washer, Steel (3/16 x 7/16 x 1/16")	1	2
16	Tube, Joystick Offset (1/2")	1	1

Kit, Joystick Tube Mounting Hardware - MPJ+/PSR/PSF

1

$113.00

D

Create/add to Wishlist

16

1114971

Tube, Joystick Offset (1/2")

1

$22.00

A

Create/add to Wishlist

16

1117463

Tube, Joystick Offset (2")

1

C

Create/add to Wishlist

17

1165493

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Clamp, Joystick	1	1
10	Pin, Threaded (3/8" x 3/4")	1	1
11	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	1
12	Washer (1/4 x 1/2 x 1/16")	1	1
14	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
15	Washer, Steel (3/16 x 7/16 x 1/16")	1	2

Kit, MK6i Joystick Clamp Mounting Hardware

1

$96.00

E

Create/add to Wishlist

18

1115000

Kit, Joystick Tube Mounting Hardware - Captain Seat

1

F

Create/add to Wishlist

19

1105049

Clamp Assembly, Fixed Height, Captain/ Van Seat

1

Create/add to Wishlist

20

1037610

Screw, Hex Head (1/4-20 x 1-5/8")

1

3

Create/add to Wishlist

21

1087219

Spacer (1/4 x 3/8 x 1")

1

3

Create/add to Wishlist

22

1025195

Locknut (1/4-20)

1

3

$8.00

Create/add to Wishlist

23

1105050

NLA - Kit, Joystick Tube Mounting Hardware - Captain/ Van Seat

1

N/A

G

Create/add to Wishlist

24

1025195

Locknut (1/4-20)

1

3

$8.00

Create/add to Wishlist

25

1101524

NLA - Spacer (1/4 x 7/16 x 5/8")

1

3

N/A

Create/add to Wishlist

26

1105049

Clamp Assembly, Fixed Height, Captain/ Van Seat

1

Create/add to Wishlist

27

1057955

Screw, Hex Head (1/4-20 x 1-1/4")

1

3

Note Code	Definition
A	Used on chairs with ASBA/ADJASBA and all powered seating
B	Includes joystick tube plus items 3-6
C	Used on chairs with Van seats, includes items 3 thru 6. Kit contains Standard (#10-32) and Metric (M5) screws. Customer selects screw that applies to their application.
D	Includes item 3 and 9-16.
E	Includes items 9-12, 14 and 15.
F	Includes item 19-22.
G	Includes item 24-27.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

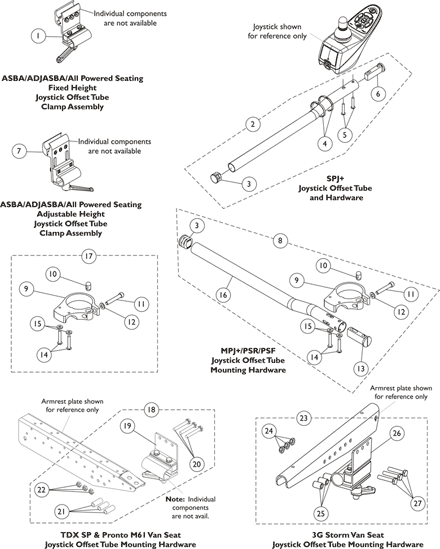

Joystick - Mounting Hardware
