1

1074497

Cane Tube Assembly, Rear, Recliner, Black - Right

1

A

Create/add to Wishlist

1

1074498

Cane Tube Assembly, Rear, Recliner, Black - Left

1

A

Create/add to Wishlist

2

1071676

Fastener, Spring Grip

1

Create/add to Wishlist

3

1021344

Screw, Socket Head (5/16-18 x 1-1/2")

1

$10.00

Create/add to Wishlist

4

60290X002

Locknut (5/16-18)

1

2

Create/add to Wishlist

5

1073495

Tube, Back, Black

1

Create/add to Wishlist

6

1021260

Tie Wrap (5-5/8" L)

1

2

$9.00

Create/add to Wishlist

7

1058938

Bushing, Pivot (5/16 x 5/8 x 1-1/8")

1

Create/add to Wishlist

8

1060057

Nut, Cap (5/16-24)

1

2

Create/add to Wishlist

9

47324X011

Bushing, Pivot (5/16 x 7/8 x 3/4")

1

Create/add to Wishlist

10

1008882

Locknut (1/4-20)

1

3

Create/add to Wishlist

11

1026099

Spacer, Coved (1/4 x 11/16 x 1/2")

1

$8.00

Create/add to Wishlist

12

1107321

Nut, Low Cap (5/16"-24)

1

$9.00

Create/add to Wishlist

13

1081095

NLA - Bracket, Recliner Adapter, Chrome - Right

1

N/A

Create/add to Wishlist

13

1081096

NLA - Bracket, Recliner Adapter, Chrome - Left

1

N/A

Create/add to Wishlist

14

11239X000

NLA - Screw, Hex Head (5/16-24 x 1-3/4")

1

N/A

Create/add to Wishlist

15

11239X001

Screw, Hex Head (5/16-24 x 1-1/2")

1

Create/add to Wishlist

16

16720X004

Screw, Hex Head (1/4-20 x 1-1/2")

1

$9.00

Create/add to Wishlist

17

1073494

NLA - Bracket, U, Chrome

1

N/A

Create/add to Wishlist

18

1058920

Screw, Socket Flat Head (5/16-24 x 2")

1

Create/add to Wishlist

19

1074471

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Cable Assembly	1	1
11	Nut, Hex (5/16"-18)	1	2
11	Housing, Support	1	1
11	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
11	NLA - Sector, Threaded	1	1
11	Tubing, Heatshrink Advhesive (1-1/2")	1	1
11	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
	Cable Assembly	1	1
	Nut, Hex (5/16"-18)	1	2
	Housing, Support	1	1
	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
	NLA - Sector, Threaded	1	1
	Tubing, Heatshrink Advhesive (1-1/2")	1	1
	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
	Cable Assembly	1	1
	Nut, Hex (5/16"-18)	1	2
	Housing, Support	1	1
	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
	NLA - Sector, Threaded	1	1
	Tubing, Heatshrink Advhesive (1-1/2")	1	1
	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
	Tubing, Heatshrink Advhesive (1-1/2")	1	1
	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
	Cable Assembly	1	1
	Nut, Hex (5/16"-18)	1	2
	Housing, Support	1	1
	NLA - Sector, Threaded	1	1

Cable and Housing Assembly

1

$55.00

Create/add to Wishlist

20

1023329

NLA - Plate Support

1

N/A

Create/add to Wishlist

21

1023328

U-Bolt (1/4-20 x 1-13/16")

1

Create/add to Wishlist

22

1086366

NLA - Tube, Locking, Chrome

1

N/A

J

Create/add to Wishlist

22

1142777

Tube, Locking, Black

1

Create/add to Wishlist

23

1042736

Rod, Locking

1

$45.00

Create/add to Wishlist

24

1070840

NLA - Nut, Swivel (5/16-18 x 21/32")

1

N/A

Create/add to Wishlist

25

1021085

Lever, Brake Release, Black

1

$14.00

Create/add to Wishlist

26

1021343

Screw, Socket Head (5/16-18 x 1-1/4")

1

Create/add to Wishlist

27

1061484

Grip, Handle, Foam, Black (5")

1

Create/add to Wishlist

28

1024221

Anti-Rattle, Black

1

Create/add to Wishlist

30

1061484

Grip, Handle, Foam, Black (5")

1

2

B

Create/add to Wishlist

30

1032245

Grip, Foam Hand (6-7/8" L)

1

2

C

Create/add to Wishlist

29

1088377

Bar Spreader with Grips, Chrome (14" W)

1

D

Create/add to Wishlist

29

1062638

NLA - Bar, Spreader with Grips, Chrome (16" W)

1

N/A

D

Create/add to Wishlist

29

1062639

NLA - Bar, Spreader with Grips, Chrome (18" W)

1

N/A

D ,K

Create/add to Wishlist

29

1088382

NLA - Bar Spreader with Grips, Chrome (20" W)

1

N/A

D ,K

Create/add to Wishlist

29

1088377

Bar Spreader with Grips, Chrome (14" W)

1

D

Create/add to Wishlist

32

1071120

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
33	Button, Single Snap	1	1
34	Insert, Seat Rail	1	1
35	Plug Button, Black (3/4")	1	1
32	Insert, Seat Rail	1	1
33	Plug Button, Black (3/4")	1	1
6	Button, Single Snap	1	1
7	Insert, Seat Rail	1	1
8	Plug Button, Black (3/4")	1	1
31	Button, Single Snap	1	1

Lock Handle

1

$10.00

E

Create/add to Wishlist

36

1088378

NLA - Bar Spreader with Locking Pins, Chrome (14" W)

1

N/A

F ,K

Create/add to Wishlist

36

1071121

NLA - Bar, Spreader with Locking Pins, Chrome (16" W)

1

N/A

F ,K

Create/add to Wishlist

36

1071122

NLA - Bar, Spreader with Locking Pins, Chrome (18" W)

1

N/A

F ,K

Create/add to Wishlist

36

1088383

NLA - Bar, Spreader with Locking Pins, Chrome (20" W)

1

N/A

F ,K

Create/add to Wishlist

36

1088388

NLA - Bar, Spreader with Locking Pins, Chrome (22" W)

1

N/A

F ,K

Create/add to Wishlist

36

1182040

Bar, Spreader with Locking Pins, Black (14" W)

1

Create/add to Wishlist

36

1182041

Bar, Spreader with Locking Pins, Black (16" W)

1

Create/add to Wishlist

36

1182042

Bar, Spreader with Locking Pins, Black (18" W)

1

$51.00

Create/add to Wishlist

36

1182043

Bar, Spreader with Locking Pins, Black (20" W)

1

Create/add to Wishlist

36

1182044

Bar, Spreader with Locking Pins, Black (22" W)

1

$51.00

Create/add to Wishlist

37

1054595

NLA - Headrest Extension Tube Assembly, Black

1

2

N/A

I

Create/add to Wishlist

38

1027095

Plug Button, Black (7/8")

1

$10.00

Create/add to Wishlist

1086368

NLA - Tube Assembly, Locking, Chrome - Right

1

N/A

G ,H

Create/add to Wishlist

1086369

NLA - Tube Assembly, Locking, Chrome - Left

1

N/A

G ,H

Note Code	Definition
A	Includes Items 2, 5-6, 19, 24, and 27.
B	Used on 14" Wide Chairs.
C	Used on 16 - 22" Wide Chairs.
D	Includes items 30 and 31.
E	Includes items 33-35.
F	Includes items 30-35.
G	Not Shown.
H	Includes Items 1, 4, 7-18, 20-23, 26, and 28.
I	Includes item 38
J	Use 1142777 as a replacement for chrome that is no longer available..
K	Chrome is No Longer Available. Select Item #36 Spreader Bar in Black as a replacement.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

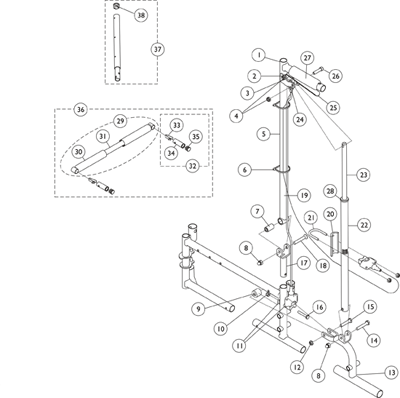

Frame Hardware - Recliner Back
