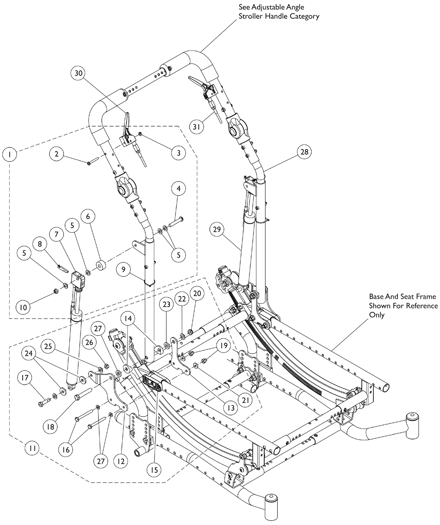

Reclining Back Hardware (RECLINEWU) Option

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1164123

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	1
3	Locknut (10-32)	1	1
4	NLA - Screw, Socket Button Head (5/16-24 x 1-3/4")	1	1
5	Washer, Steel (21/64 x 5/8 x 3/64")	1	4
6	Spacer (3/8 x 1 x 1/2")	1	1
7	Bracket, Cylinder Release, Black	1	1
8	Lever, Cylinder Release	1	1
9	Tie Wrap (3-29/32" L)	1	1
10	Locknut (5/16-24)	1	1
2	Locknut (10-32)	1	1
3	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	1
4	Spacer (3/8 x 1 x 1/2")	1	1
5	Washer, Steel (21/64 x 5/8 x 3/64")	1	4
6	Bracket, Cylinder Release, Black	1	1
7	Lever, Cylinder Release	1	1
8	Locknut (5/16-24)	1	1
9	Tie Wrap (3-29/32" L)	1	1
10	NLA - Screw, Socket Button Head (5/16-24 x 1-3/4")	1	1

Kit, Cable Release Hardware

$31.00

Create/add to Wishlist

1164124

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Bracket, Outer Back, Recliner, Black - Right	1	1
13	Bracket, Inner Back, Recliner, Black	1	1
14	NLA - Spacer, Coved (3/8 x 1 x 9/16")	1	2
15	Uni-Washer, Dual	1	1
16	Screw, Hex Head (1/4-28 x 2-1/4")	1	2
17	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
18	Screw, Hex Head (3/8-16 x 2")	1	1
19	Nut, Hex Nylon (1/4-28)	1	2
20	Locknut (3/8-16)	1	1
21	Washer, Steel (1/4 x 5/8 x 3/32")	1	2
22	Washer (25/64 x 11/16 x 1/32")	1	1
23	Washer, Nylon (13/32 x 3/4 x 1/8")	1	2
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
12	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
13	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
14	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
15	Locknut (5/16-18)	1	1
16	Bracket, Outer Back, Recliner, Black - Right	1	1
17	Washer, Nylon (13/32 x 3/4 x 1/8")	1	2
18	NLA - Spacer, Coved (3/8 x 1 x 9/16")	1	2
19	Plug	1	2
20	Bracket, Inner Back, Recliner, Black	1	1
21	Washer (25/64 x 11/16 x 1/32")	1	1
22	Locknut (3/8-16)	1	1
23	Nut, Hex Nylon (1/4-28)	1	2
24	Washer, Steel (1/4 x 5/8 x 3/32")	1	2
25	Uni-Washer, Dual	1	1
26	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
27	Screw, Hex Head (1/4-28 x 2-1/4")	1	2
28	Screw, Hex Head (3/8-16 x 2")	1	1
25	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
26	Locknut (5/16-18)	1	1
27	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2

Kit, Reclining Back Hardware - Right

Create/add to Wishlist

1164125

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
13	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
14	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
15	Locknut (5/16-18)	1	1
16	Bracket, Outer Back, Recliner, Black - Left	1	1
17	Washer, Nylon (13/32 x 3/4 x 1/8")	1	2
18	NLA - Spacer, Coved (3/8 x 1 x 9/16")	1	2
19	Plug	1	2
20	Bracket, Inner Back, Recliner, Black	1	1
21	Washer (25/64 x 11/16 x 1/32")	1	1
22	Locknut (3/8-16)	1	1
23	Nut, Hex Nylon (1/4-28)	1	2
24	Washer, Steel (1/4 x 5/8 x 3/32")	1	2
25	Uni-Washer, Dual	1	1
26	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
27	Screw, Hex Head (1/4-28 x 2-1/4")	1	2
28	Screw, Hex Head (3/8-16 x 2")	1	1
12	Bracket, Outer Back, Recliner, Black - Left	1	1
13	Bracket, Inner Back, Recliner, Black	1	1
14	NLA - Spacer, Coved (3/8 x 1 x 9/16")	1	2
15	Uni-Washer, Dual	1	1
16	Screw, Hex Head (1/4-28 x 2-1/4")	1	2
17	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
18	Screw, Hex Head (3/8-16 x 2")	1	1
19	Nut, Hex Nylon (1/4-28)	1	2
20	Locknut (3/8-16)	1	1
21	Washer, Steel (1/4 x 5/8 x 3/32")	1	2
22	Washer (25/64 x 11/16 x 1/32")	1	1
23	Washer, Nylon (13/32 x 3/4 x 1/8")	1	2
24	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
25	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
26	Locknut (5/16-18)	1	1
27	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2

Kit, Reclining Back Hardware - Left

Create/add to Wishlist

1165556

Back Canes, Recliner w/o Upholstery (Pair)

Create/add to Wishlist

1050154

Cylinder, Lock, Recline

$165.00

Create/add to Wishlist

1078318

Handle, Cable Release, Black

$14.00

Create/add to Wishlist

1082638

Cable Release Assembly

$49.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 thru 10. The kit accommodates one side only.
B	Includes items 12 thru 27.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
