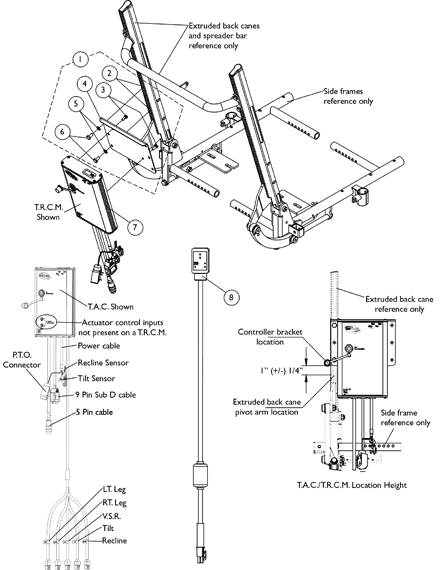

Electronics - MK5 TAC/TRCM and Mounting Hardware For Extruded Back Canes

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1121180

NLA - Hardware, T.A.C./T.R.C.M. Mounting, Extruded Back Canes

N/A

Create/add to Wishlist

1082699

T-Nut (1/4-20)

$14.00

Create/add to Wishlist

1079316

NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")

N/A

Create/add to Wishlist

1113601

NLA - Bracket, Controller Mounting, Black

N/A

Create/add to Wishlist

1026907

Washer (1/4 x 1/2 x 1/16")

$8.00

Create/add to Wishlist

1078214

Screw, Hex Head w/ Patch (1/4-20 x 1/2")

Create/add to Wishlist

1118728

NLA - Controller, MK5 TAC

N/A

Create/add to Wishlist

1118729

NLA - Controller, MK5 TRCM

N/A

Create/add to Wishlist

1118729E

NLA - Reconditioned - Controller, MK5 TRCM

N/A

Create/add to Wishlist

1119418

Cable, Auxiliary Power

Create/add to Wishlist

1142595

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	T-Nut (1/4-20)	1	2
3	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
4	NLA - Bracket, Controller Mounting, Black	1	1
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
7	NLA - Controller, MK5 TAC	1	1
	Tie Wrap (11-1/2" L)	1	10
	Tie Wrap (5-5/8" L)	1	10
	NLA - Instruction Sheet, MK5 SAC To MK5 TAC Conversion For Tarsys 2GT w/ Round & Extruded Back Canes on TDX	1	1

Kit, MK5 SAC To MK5 TAC Conversion For Tarsys 2GT w/ Extruded Back Canes on TDX

N/A

Create/add to Wishlist

1142595E

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - WARR RPLMT - Controller, MK5 TAC	1	1
NLA - Hardware, T.A.C./T.R.C.M. Mounting, Extruded Back Canes	1	1
NLA - Instruction Sheet, MK5 SAC To MK5 TAC Conversion For Tarsys 2GT w/ Round & Extruded Back Canes on TDX	1	1
Tie Wrap (11-1/2" L)	1	10
Tie Wrap (5-5/8" L)	1	10

Reconditioned - Kit, MK5 SAC To MK5 TAC Conversion Kit For Tarsys 2GT w/ Extruded Back Canes on TDX

N/A

Create/add to Wishlist

1095503

NLA - Package, Tie Wrap (5-5/8" L)

N/A

Create/add to Wishlist

1095502

NLA - Package, Tie Wrap (11-1/2" L)

N/A

Create/add to Wishlist

1141485

NLA - Instruction Sheet, MK5 SAC To MK5 TAC Conversion For Tarsys 2GT w/ Round & Extruded Back Canes on TDX

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-6
B	When converting a MK5 SAC to a MK5 TAC, refer to the Conversion Kit part # 1142595. Conversion Kit includes all parts needed to convert a (Tarsys 2GT w/ Extruded Canes on TDX)
C	Not Shown. Kit components for a Tarsys 2GT w/ Extruded Canes on TDX uses items 2-7, Cable Ties and Instruction Sheet
D	Not Shown
E	1118729 is no longer available. Order part number 1118729E as a replacement

Catalog Literature

Parts Books for Tarsys® Tilt Only (2GT™) Recline Only (2GR™) Tilt and Recline (2GTR™)
