EQUIPMENT CA Site

1

1029501

Plug Button, Black (1")

1

2

$9.00

Create/add to Wishlist

2

1027095

Plug Button, Black (7/8")

1

3

$10.00

Create/add to Wishlist

3

1099924

NLA - Grip, Hand, Black

2

1

N/A

Create/add to Wishlist

4

1098977

NLA - Pad, Foam

1

N/A

Create/add to Wishlist

5

1099910

NLA - Cover, Nylon - U240

1

N/A

Create/add to Wishlist

6

1099925

Part/Kit Description	Qty/Pkg	Qty/Asbly
Tube, Lock Outside	1	1
Tube, Lock Inside	1	1
Plug Button, Black (7/8")	1	1
Plug Button, Black (3/4")	1	1
Housing, Button	1	1
Button, Release	1	1
Locknut (1/4-20)	1	2
Washer, Nylon (1/4 x 1/2 x 1/16")	1	2
Screw, Hex Head (1/4-20 x 1-1/2")	1	2
Button, Snap Ramp	1	1
Button, Snap	1	1

NLA - Kit, Folding Lock Assembly

1

A

Create/add to Wishlist

6

1099929

Part/Kit Description	Qty/Pkg	Qty/Asbly
Tube, Lock Outside, Large	1	1
Tube, Lock Inside, Large	1	1
Plug Button, Black (7/8")	1	1
Plug Button, Black (3/4")	1	1
Housing, Button	1	1
Button, Release	1	1
Locknut (1/4-20)	1	2
Washer, Nylon (1/4 x 1/2 x 1/16")	1	2
Screw, Hex Head (1/4-20 x 1-1/2")	1	2
Button, Snap Ramp	1	1
Button, Snap	1	1

NLA - Kit, Folding Lock Assembly

1

B

Create/add to Wishlist

7

6212

Part/Kit Description	Qty/Pkg	Qty/Asbly
Insert, Wheel	1	2
NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
Screw, Shoulder Hex Socket (3/8 x 2", 5/16-18)	1	2
Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
Screw, Socket Head (8-32 X 3/8")	1	2
Wheel (5")	1	2
Locknut (1/4-20)	1	2
Washer (1/4 x 1/2 x 1/32")	1	2
Screw, Hex Head (1/4-20 x 1-1/4")	1	2

Kit, Wheel One-Way

1

Create/add to Wishlist

7

1102915

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	1
Screw, Shoulder Hex Socket (3/8 x 2", 5/16-18)	1	1
Washer, Flat (3/8 x 11/16 x 1/16")	1	1
Screw, Set Socket Cup Point (#8-32 x 1/4")	1	1
Wheel (5")	1	1
Locknut (1/4-20)	1	1
Washer (1/4 x 1/2 x 1/32")	1	1
Screw, Hex Head (1/4-20 x 1-1/4")	1	1
Insert, Wheel	1	1

Kit, Wheel One-Way - Right

1

N/A

Create/add to Wishlist

7

1102916

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	1
Screw, Shoulder Hex Socket (3/8 x 2", 5/16-18)	1	1
Washer, Flat (3/8 x 11/16 x 1/16")	1	1
Screw, Set Socket Cup Point (#8-32 x 1/4")	1	1
Wheel (5")	1	1
Locknut (1/4-20)	1	1
Washer (1/4 x 1/2 x 1/32")	1	1
Screw, Hex Head (1/4-20 x 1-1/4")	1	1
Insert, Wheel	1	1

Kit, Wheel One-Way - Left

1

N/A

Create/add to Wishlist

8

6213

Part/Kit Description	Qty/Pkg	Qty/Asbly
Insert, Wheel	1	2
NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
Screw, Shoulder Hex Socket (3/8 x 2", 5/16-18)	1	2
Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
Screw, Socket Head (8-32 X 3/8")	1	2
Bushing (15/32 x 3/8")	1	2
Wheel (5" x 1")	1	2
Locknut (1/4-20)	1	2
Washer (1/4 x 1/2 x 1/32")	1	2
Screw, Hex Head (1/4-20 x 1-1/4")	1	2

Kit, Wheel Two-Way

1

Create/add to Wishlist

8

1099926

NLA - Kit, Wheel Two-Way - Right/Left

1

2

N/A

Create/add to Wishlist

9

1099930

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Hex Head (1/4-20 x 1-1/4")	1	1
Washer (1/4 x 1/2 x 1/32")	1	1
Locknut (1/4-20)	1	1

NLA - Kit, Wheel Hardware

1

N/A

Create/add to Wishlist

6214

Part/Kit Description	Qty/Pkg	Qty/Asbly
Bolt, Curved Head (1/4-20 x 1-1/4")	1	2
Washer (1/4 x 1/2 x 1/32")	1	2
Locknut (1/4-20)	1	2
NLA - Tip, Rubber, Black (3/4" Tubing)	1	2
Insert, Wheel	1	2

Kit, Rubber Tip Assembly

1

Create/add to Wishlist

1099931

NLA - Package, Rubber Tip

2

4

N/A

C

Create/add to Wishlist

1046319

NLA - Paint, Touch-Up, 17P Cobalt Blue

1

N/A

C

Create/add to Wishlist

1031455

NLA - Paint, Touch-Up, 33P Red

1

N/A

C

Create/add to Wishlist

1031456

NLA - Paint, Touch-Up, 08P Deep Purple

1

N/A

C

Note Code	Definition
A	To be used with Model 6210's.
B	To be used with Model 6211's.
C	Not Shown.

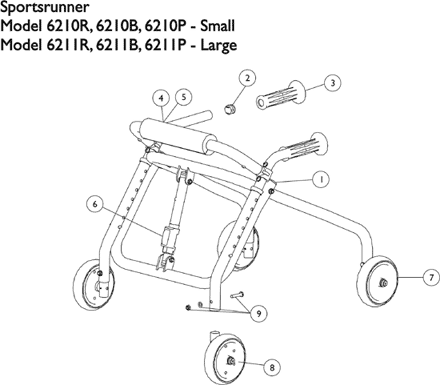

Walker (Pediatric - Model 6210R, 6210B, 6210P, 6211R, 6211B & 6211P)
