EQUIPMENT CA Site

1

9099

NLA - Pump

1

N/A

A

Create/add to Wishlist

1

9099P

Pump, Hydraulic

1

$419.00

A

Create/add to Wishlist

1

9099E

NLA - Pump, Reconditioned, Chrome

1

N/A

A

Create/add to Wishlist

1

9099R

NLA - Pump, Hydraulic

1

N/A

A

Create/add to Wishlist

1

9099RE

NLA - Pump, Reconditioned, Reliant, Isolet Grey

1

N/A

A

Create/add to Wishlist

1011941

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	T-Bolt, Threaded End (6-32 x 25/32)	1	3
	Instruction Sheet	1	1
2	Nut, Hex (#6-32)	1	3
3	Washer, Flat (11/64 x 3/8 x 1/32")	1	3

NLA - Kit, Pump Handle Hardware Upgrade

1

N/A

B ,D

Create/add to Wishlist

5

90013X000

NLA - Link

1

N/A

Create/add to Wishlist

6

90012X000

NLA - Handle, Pump, Chrome

1

N/A

Create/add to Wishlist

7

90007X000

NLA - Grip, Handle - 9805

1

Create/add to Wishlist

7

1065926

NLA - Grip, Hand, Black

1

N/A

Create/add to Wishlist

8

60284X007

Screw, Socket Set Flat Point (1/4-20 x 3/8")

1

Create/add to Wishlist

9

90015X000

NLA - Handle, Control, Chrome

1

N/A

Create/add to Wishlist

10

See Note

See Footnote

1

C

Create/add to Wishlist

11

See Note

See Footnote

1

2

C

Create/add to Wishlist

12

90032X000

Screw, Set Socket Cup Point (#8-32 x 1/4")

1

2

Create/add to Wishlist

13

See Note

See Footnote

1

C

Create/add to Wishlist

14

90024X000

NLA - O-Ring, Tank (2-7/64 x 2-3/8 x 1/8")

1

N/A

Create/add to Wishlist

15

90023X000

NLA - O-Ring, Piston (1/2 x 11/16 x 7/64")

1

N/A

Create/add to Wishlist

16

90033X000

NLA - Piston

1

N/A

Create/add to Wishlist

17

90034X000

NLA - Cup, Piston

1

N/A

Create/add to Wishlist

18

See Note

See Footnote

1

C

Create/add to Wishlist

19

90036X000

NLA - Screw, Allen Head (1/4-28 x 1")

1

N/A

Create/add to Wishlist

20

40363X000

Hex Nut (3/8"-16)

1

Create/add to Wishlist

21

90028X000

NLA - Washer, Inside Ram (3/8" x 57/64" x 1/4")

1

N/A

Create/add to Wishlist

22

90026X000

NLA - Cup, Ram

1

N/A

Create/add to Wishlist

23

90029X001

NLA - Washer, Outside Ram (3/8" x 1-1/4" x 11/32")

1

N/A

Create/add to Wishlist

24

See Note

See Footnote

1

C

Create/add to Wishlist

25

90052X000

NLA - Ram

1

N/A

Create/add to Wishlist

26

90022X000

NLA - O-Ring, Ram (7/8 x 1-1/8 x 1/8")

1

N/A

Create/add to Wishlist

27

90031X000

NLA - Cylinder, Ram

1

N/A

Create/add to Wishlist

28

90135X000

NLA - Washer, Nylon (3/4" x 1/34/65" x 1/16")

1

N/A

Create/add to Wishlist

29

90043X000

NLA - Plug, Pressure (1/8")

1

3

Create/add to Wishlist

30

90053X000

NLA - Tube, Bonnet

1

Create/add to Wishlist

31

90045X000

NLA - Spring, Helical Compression

1

N/A

Create/add to Wishlist

32

90040X000

NLA - Ball, Steel (5/16")

1

2

Create/add to Wishlist

33

90037X000

NLA - Body, Pump

1

N/A

Create/add to Wishlist

34

90041X000

NLA - Spring, Helical Compression

1

Create/add to Wishlist

35

90039X000

NLA - Inlet Fitting

1

N/A

Create/add to Wishlist

36

90042X000

NLA - Ball, Steel (3/16")

1

N/A

Create/add to Wishlist

37

See Note

See Footnote

1

C

Create/add to Wishlist

38

90017X000

NLA - Screw, Phillips Pan Head (#10-32 x 5/16")

1

2

N/A

Create/add to Wishlist

39

90008X000

NLA - Reservoir, Tank - Chrome

1

N/A

Create/add to Wishlist

39

1065927

NLA - Reservior, Tank, Isolet Grey

1

N/A

Create/add to Wishlist

40

90009X000

NLA - Nut, EMT (1-1/8-18 x 5/16")

1

N/A

Create/add to Wishlist

41

90011X000

NLA - Screw, 9099 Pump Only (#8-32 x 1/8")

1

N/A

Create/add to Wishlist

42

91100X238

NLA - Ring, Retaining

1

N/A

Create/add to Wishlist

90046X000

NLA - Oil, Hydraulic (16 oz)

1

D

Note Code	Definition
A	Includes items 2 - 41.
B	Kit Includes Items 2, 3, and 4 and Instruction Sheet
C	Items is no longer serviceable in the field.
D	Not shown.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

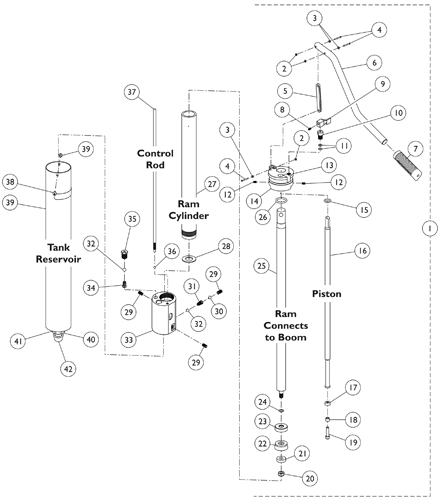

Hydraulic Pump - 9099 and 9099P
