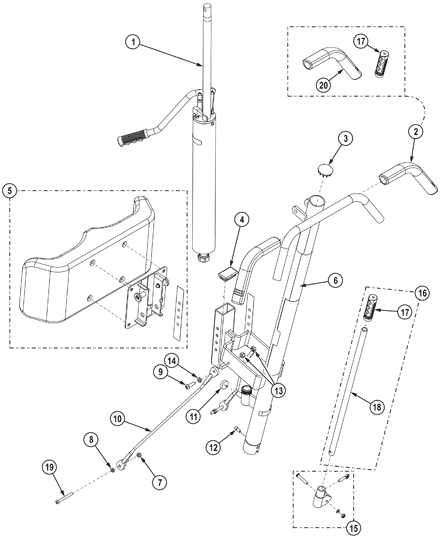

Mast Assembly - Get-U-Up - GHS350

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

9099P

Pump, Hydraulic

$419.00

Create/add to Wishlist

1123444

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Grip, Hand - 9805	2	1
20	Grip, Hand - 9805	2	1
17	NLA - Grip, Handle - 9805	1	1
16	NLA - Grip, Handle - 9805	1	1
16	NLA - Grip, Handle - 9805	1	1
13	Grip, Hand - 9805	2	1

Kit, Handgrip

Create/add to Wishlist

1123442

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Cap, Mast	1	1
NLA - Cap, Mast	1	1
Cap, End, Grey (2 x 2-1/2")	2	1
Cap, End, Grey (2 x 2-1/2")	2	1
NLA - Plug Button, Metal, Chrome (1-3/4")	2	1
Cap, End, Grey (2 x 2-1/2")	1	2
Cap, End, Grey (2 x 2-1/2")	2	1
NLA - Plug Button, Metal, Chrome (1-3/4")	2	1
NLA - Cap, Mast	1	1
NLA - Cap, Mast	1	1
NLA - Plug Button, Metal, Chrome (1-3/4")	2	1
NLA - Plug Button, Metal, Chrome (1-3/4")	1	2

NLA - Kit, Plugs and Caps

N/A

Create/add to Wishlist

1065360

Cap, End, Black (1-1/4 x 2")

Create/add to Wishlist

1152593

Part/Kit Description	Qty/Pkg	Qty/Asbly
Pad, Knee	1	1
Mounting Assembly	1	1
Tape	1	2

Kit, Knee Pad with Mounting Assembly

Create/add to Wishlist

1152595

Part/Kit Description	Qty/Pkg	Qty/Asbly
Decal, Warning	1	1
Label, Lift Patient Operation	1	1
Mast	1	1
Decal, Get-U-Up	1	1

Kit, Mast

Create/add to Wishlist

0054906

Locknut, High Profile (5/16-18)

Create/add to Wishlist

1072692

NLA - Lockwasher, Split (5/16")

N/A

Create/add to Wishlist

1163423

Screw, Socket Button Head (5/16-18 x 1")

Create/add to Wishlist

1148210

Cable, Eyelet

Create/add to Wishlist

1148213

Stopper, Rubber

Create/add to Wishlist

60284X001

Screw, Socket Head (1/4-20 x 1/2")

Create/add to Wishlist

0054906

Locknut, High Profile (5/16-18)

Create/add to Wishlist

1072692

NLA - Lockwasher, Split (5/16")

N/A

Create/add to Wishlist

1140731

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	NLA - Instruction Sheet	1	1
29	NLA - Washer, Flat (1/4 x 1/2 x 1/16")	1	1
28	Locknut (1/4-20)	1	1
	NLA - Instruction Sheet	1	1
26	NLA - Bushing (5/8 x 1-1/8 x 5/16")	1	1
	NLA - Screw, Thumb (1/4-20 x 1")	1	1
	Cam, Lock	1	1
	NLA - Washer, Flat (1/4 x 1/2 x 1/16")	1	1
24	Cam, Lock	1	1
27	NLA - Screw, Thumb (1/4-20 x 1")	1	1
	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	1
	Locknut (1/4-20)	1	1
25	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	1
	NLA - Bushing (5/8 x 1-1/8 x 5/16")	1	1

Kit, Camlock w/ Hardware

Create/add to Wishlist

1140730

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
18	Handle, Shifter - 9805	1	1
18	Handle, Shifter - 9805	1	1
17	NLA - Grip, Handle - 9805	1	1
16	NLA - Grip, Handle - 9805	1	1

Kit, Shifter

Create/add to Wishlist

1036840

Screw, Socket Button Head (1/4-20X2-1/4")

Create/add to Wishlist

10369X000

NLA - Wrench, Allen (3/16")

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit includes item 17 and 20.
B	Includes (2) Plug Buttons, (2) leg end caps and (1) Mast Cap. See category titled, "Base Assembly - Get - U - Up - GHS350" for Leg end caps. Only (1) Plug Button is used for this model. Single mast cap not used on this model and may be discarded.
C	Parts marked "NLA" within this Kit are not available for individual sale. The complete kit must be ordered to receive all individual parts listed.
D	Not Shown.
